tplink cpe210(CN) v1.0 use AR9350,instead of 9344,can't install AREDN

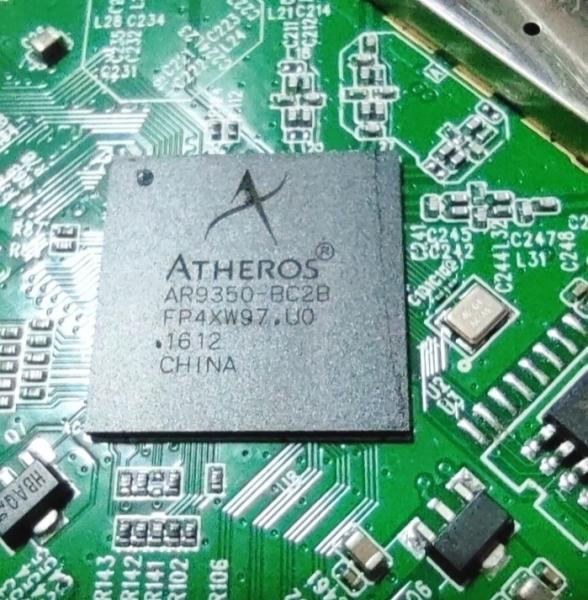

hello everyone,i need help.cpe210 v1.0 is the cheapest hardware,but i can't install AREDN with PXE.i use a ch341a flash the factory.bin into the cpe210v1.0,it doesn't i move the cover on the cpu ,i find the cpe210v1.0(CN) use AR9350,Instead of i have no idea.



Image Attachments:
w6bi's picture
CPE 210 v 1.0

It's been a long time since I first installed AREDN software on my CPE 210 v1 (still running!) but I seem to recall that I was able to install 3rd party software from the native UI.

Here's the procedure to install OpenWrt on a CPE210.  It should be the same with AREDN:

  1. Connect the TP-Link CPE210 with your computer via ethernet
  2. Set the IP address of your computer to with a subnetmask of
  3. Open your browser, go to and accept the invalid certificate
  4. Log in with user “admin” and password “admin”, change the password in the next step
  5. Go to the “System” tab and upload the OpenWrt firmware in the “Firmware Update” section and select “Restore” in the dialog promted
  6. Follow official OpenWrt setup instructions (e.g. IP address of the device is now

Good luck!

Orv W6BI

W6BI,Thank you very

W6BI,Thank you very doesn't work on the CN version,seem has the different hardware and different software.

Log on to the device using

Log on to the device using SSH and provide the output of the following commands.

cat /dev/mtdblock2 | grep CPE210

cat /proc/cpuinfo


# cat /dev/mtdblock2 | grep
# cat /dev/mtdblock2 | grep CPE210
# cat /proc/cpuinfo
system type             : Atheros AR934x
processor               : 0
cpu model               : MIPS 74Kc V4.12
BogoMIPS                : 279.55
wait instruction        : yes
microsecond timers      : yes
tlb_entries             : 32
extra interrupt vector  : yes
hardware watchpoint     : yes, count: 4, address/irw mask: [0x0000, 0x00c8, 0x0008, 0x0148]
ASEs implemented        : mips16 dsp
shadow register sets    : 1
core                    : 0
VCED exceptions         : not available
VCEI exceptions         : not available
# dmesg
-sh: dmesg: not found
Make sure you know how to

Make sure you know how to recover to the Vendor Firmware.

I have created an OpenWrt Version that should run on your device.
Download the file here

Unzip it and install the factory.bin using the Pharos Software.

Once it has installed and rebooted you can connect to the device using SSH or PUTTY on ip

Copy the Aredn Sysupgrade software for the CPE210 V1 to the device using SCP or PSCP into the /tmp folder

Upgrade the device to the AREDN software using the following command
sysupgrade -v -n /tmp/<Aredn_Firmware_filename.bin>

Once it has installed procees as normal

Once you have downloaded the image from the link I sent please let me know so I can delete it to free up space on my Google drive.

KK4ZUZ,Thank you verymuch.but

KK4ZUZ,Thank you verymuch.but it doesnt work,i use the Pharos ,Not supported hardware error.i think the CN vision maybe prevent users from installing additional firmware.Thanks for your help.maybe i will try AREDN with ubnt.
