NBM365

6 posts / 0 new
Last post
N7JYS
NBM365

This may be a bug. Just got a 3.65 GHZ Nano Bridge from a friend of mine to test  the Arden firmware out on. Downloaded and installed 3.18.9.0.ubnt.bullet-m-factory.bin into the NanoBridge. Firmware loaded fine. However in the channel listing it sais 5.180 - 5.825 Ghz. Nothing in the 3.380-3.495 Ghz band. I know this Firmware is not tested so maybe this is something to fix?

Eric

N7JYS

N7JYS
NBM365

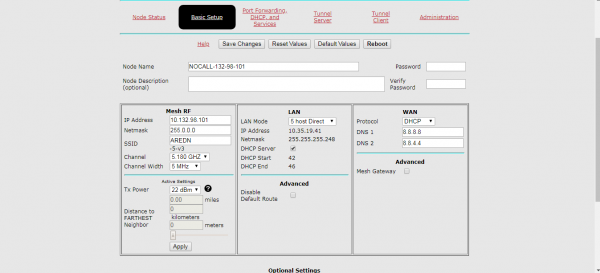

Screen shot of setup Page

Eric

N7JYS

Image Attachments:
K6AH
K6AH's picture
Don't use AREDN Firmware on this device

You don't have a license to operate the M365.  In the interest of protecting the AREDN Project, please remove the AREDN firmware image from this device.

Thanks,

Andre, K6AH


W6GSW
W6GSW's picture
Not an AREDN-supported device

If the device is a NanoBridge M365 as you indicated (3.65-3675 GHz), it is not supported by the AREDN firmware as it will not operate in the Amateur allocation.

The NanoBridge M3 (3.3-3.7 GHz) is a supported device.  We have several in operation and they work great for long-distance, point-to-point links in Southern California.


N7JYS
NanoBridge M365

The friend I got this Nanobridge from is a ham and purchased the license to operate these in the 3.65ghz band.  Thanks for the heads-up

Eric

N7JYS

K6AH
K6AH's picture
AREDN Firmware will not work...

AREDN Firmware will not work...  The reason you see 5 GHz channels is because this is a 5 GHz radio with a transverter to 3.65 GHz.  The AREDN Project has no intentions of supporting it's use on 3.65 GHz.  Sorry about that, but you need to check the Supported Device Matrix before expecting our firmware to work.
