NanoStationloco M5 is not responding (solved)

6 posts / 0 new
Last post
DD4SG
NanoStationloco M5 is not responding (solved)

Hi Guys



today I received my new NanoStationLocoM5. I could not wait, and started to get the AREDN Software on the Device. I chose the aredn-3.19.3.0.ubnt-rocket-m-xw-factory.bin. Now I am not sure if this the right firmware. I searched not the forum because i think this is a special problem



I describe my steps.



I am using an Ubuntu. I installed the tftp and conetcted to the 192.168.1.20. followed the manual and copied the file. Her e my output :

gerold@gerold-CF-19CHD07BE:~$ tftp 192.168.1.20

tftp> bin

tftp> trace on

Packet tracing on.

tftp> put aredn-3.19.3.0-ubnt-rocket-m-xw-factory.bin

sent WRQ <file=aredn-3.19.3.0-ubnt-rocket-m-xw-factory.bin, mode=octet>

sent WRQ <file=aredn-3.19.3.0-ubnt-rocket-m-xw-factory.bin, mode=octet>

sent WRQ <file=aredn-3.19.3.0-ubnt-rocket-m-xw-factory.bin, mode=octet>

sent WRQ <file=aredn-3.19.3.0-ubnt-rocket-m-xw-factory.bin, mode=octet>

sent WRQ <file=aredn-3.19.3.0-ubnt-rocket-m-xw-factory.bin, mode=octet>

Transfer timed out.



I waited 3 minutes and cyled the power. After that i read the the Tranfer timed out and restarted the process.





tftp> put aredn-3.19.3.0.-ubnt-rocket-m-xw.factory.bin

tftp: aredn-3.19.3.0.-ubnt-rocket-m-xw.factory.bin: No such file or directory

tftp> exit

?Invalid command

tftp> quti

?Invalid command

tftp> quit

gerold@gerold-CF-19CHD07BE:~$ ping 192.168.1.20

connect: Network is unreachable

gerold@gerold-CF-19CHD07BE:~$ tftp 192.168.1.20

tftp> bin

tftp> trace on

Packet tracing on.

tftp> put aredn-3.19.3.0-ubnt-rocket-m-xw-factory.bin

sent WRQ <file=aredn-3.19.3.0-ubnt-rocket-m-xw-factory.bin, mode=octet>

sent WRQ <file=aredn-3.19.3.0-ubnt-rocket-m-xw-factory.bin, mode=octet>

sent WRQ <file=aredn-3.19.3.0-ubnt-rocket-m-xw-factory.bin, mode=octet>

sent WRQ <file=aredn-3.19.3.0-ubnt-rocket-m-xw-factory.bin, mode=octet>

sent WRQ <file=aredn-3.19.3.0-ubnt-rocket-m-xw-factory.bin, mode=octet>

Transfer timed out.





It did not worked i assumed, and startet the process again. But now I can not connect to the 192.168.1.20

Did I jammed the Firmware? Has anyone an Idear. Is there a possibity to get to the device? I can put it in the Blinking mode for the tfpt but it do not answer.If

if I recyle the Power the Green LED is on an the Lan LED is blinking the others are of. the Nano is not responding on 192.168.1.1 or 192.168.1.20

Thanks for the Help.

Gerold DD4SG

nc8q
nc8q's picture
NanoStation Loco M5 XW && Ubuntu

If: NanoStation Loco M5 XW with test date on or after ~Nov 2017 rocket-m-xw

Ubuntu:

From: https://www.arednmesh.org/content/tftp-firmware-installation

Obtain the appropriate firmware from the AREDN Download page at https://www.arednmesh.org/content/current-software

Disconnect or disable the WiFi on your computer.

Alternate:
cd Downloads
ln -s aredn-3.19.3.0-ubnt-rocket-m-xw-factory.bin rmxwf.bin

ifconfig eth0 192.168.1.5 (any of 192.168.1.[1-19,21-254] )
(Your ethernet device may have a different name.)

Press and hold the reset button, then apply power.

When LEDs blink 1-3 then 2-4, release reset button.

Issue the commands on your computer to send the AREDN firmware to your device
$ tftp 192.168.1.20
trace
verbose
binary
put rmxwf.bin
...
quit

Start wait.

Configure your computer’s wired network adapter to use DHCP addressing.
Alternate: Reboot Ubuntu

After ~3 minutes, end wait.

Continue from: Login to your device with a web browser and complete the device setup

I hope this helps,
Chuck

K6AH
K6AH's picture
Wrong file...

The NanoStation Loco M5 uses the Bullet image, not the Rocket.  Use aredn-3.19.3.0-ubnt-bullet-m-factory.bin

AE6XE
AE6XE's picture
Gerold,     Best to confirm

Gerold,     Best to confirm which model you have, this may be the unknown still.    Ubiquiti is making it challenging for the opensource community with this model.  There are 3 possible images for a loco M5. If the device is still booting with AirOS, then the firmware version will say ether "XM" or "XW", otherwise have to guess or open the case to inspect chipsets.   No worries, if you get it wrong, you won't brick it, just doesn't work, try another flavor of the firmware.

XM:   As Andre indicated - ​aredn-3.19.3.0-ubnt-bullet-m-factory.bin
XW:  As Chuck indicated - ​aredn-3.19.3.0-ubnt-rocket-m-xw-factory.bin -- if test date on box label is after ~Nov 2017
XW:  aredn-3.19.3.0-ubnt-loco-xw-factory.bin -- if test date on box label is before ~Nov 2017

Joe AE6XE

DD4SG
Hi

Hi

Thanks for the help, unfortunately the device is not responding on airos. It is a brand new model purchased a weeknago so the 2017 firmeware is out.

The Test date is 4/10/18

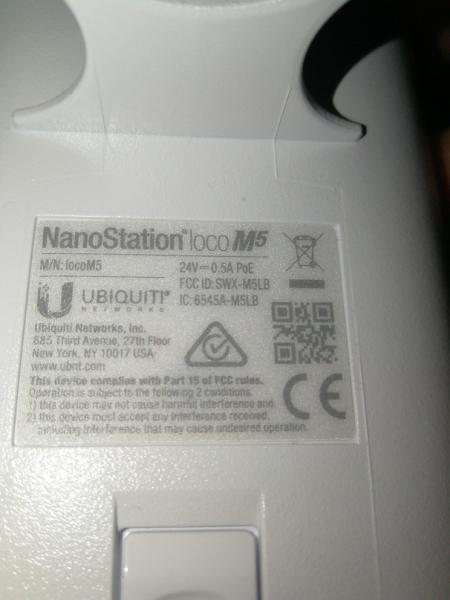

I have attached the name plate of the device.

It is Sunday evening here and if i can convince my family for Ham-time I will test it this evening.

Kind regards Gerold DD4SG

Image Attachments:
DD4SG
Hi Guys

Hi Guys

Thanks for the Help it works. Unfortunately i did not get a connection under linux but ater i tried windows i was able to configure the Device. The rocket Fw was working.

I configured yesterday the local Ip to 109.168.1.15 this was the mistake.

We have at 4. Of January a local meeting with other Arden guys to get an Network running in Stuttgart. There i will configure the rest.

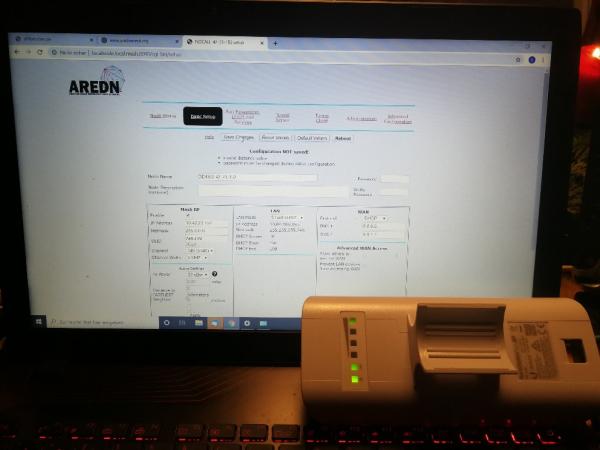

I have attached a pic

Once again thanks to all

Regards Gerold DD4SG

Image Attachments:
