hAP RF mesh gone [solved]

6 posts / 0 new
Last post
aj3di
hAP RF mesh gone [solved]

After using the DtD port, the hAP no longer produces mesh 2.4 rf.

Yes it is enabled.

Yes it worked prior to DtD.

Wifi scan is not working. Well, it works, just nothing heard.

Nightly 648.

Just a heads up.

Don't think the hardware coincidentally died on 2 different devices at different locations.

AE6XE
AE6XE's picture
please capture the data

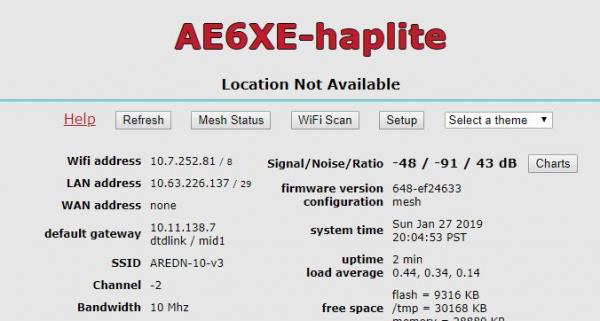

please capture the data download file and upload here.   I am unable to reproduce.  Accessing mine over dtdlink and seeing an RF link to anther NSM2.

Joe AE6XE

Image Attachments:
aj3di
Support data

Powered by ac adapter.

Support File Attachments:
k1ky
k1ky's picture
What supply voltage?

Just a poke in the dark here - are you using the supplied 24 volt power adapter? Are you using the DTD Port as POE out?  If so, what happens if you remove the load from the DTD port??

AE6XE
AE6XE's picture
You must be running into this

You must be running into this issue:  https://github.com/aredn/aredn_ar71xx/issues/301

As best can be determined so far, it's believed to be a hardware problem on the hAP ac lite when using 5MHz channel width.  Change to 10MHz channel width and see what happens.

Joe AE6XE

aj3di

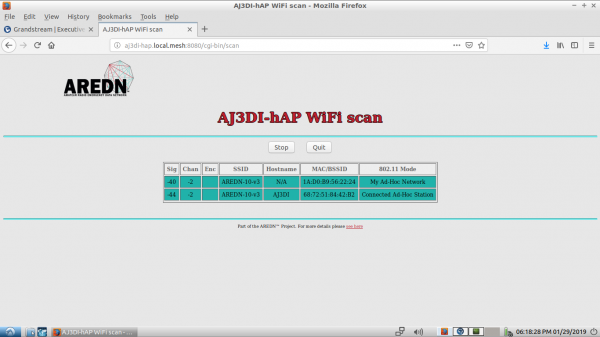

That was it!

10MHz RF works.

Thank you.


Image Attachments:
