N7JYS
UBNT Tough Switch
Trying to setup a Ubiquiti Tough Switch to have access across my AREDN mesh network.  Not finding any information on how to do so. Im guessing this needs to be set up as a service?

Eric

N7JYS


K5DLQ
K5DLQ's picture
Have you looked at the info
Have you looked at the info under the website menubar...  SOFTWARE/Ubiquiti Switches
N7JYS
UBNT Tough Switch
Yes I been to that menu bar several times to configure the Vlans and see the Management checked on Vlan11 but it dosent show how to access the smart switch across  the ARDEN nodes. Do I need to run this as a service?
AE6XE
AE6XE's picture
For the node with the LAN of
For the node with the LAN of vlan 11, look in the port forward dhcp services page.   You should see an IP address allocated to the TS.  The TS needs to be configured to receive a management IP address via DHCP.    Then add  to reserve the IP address and give it a hostname.   Next, advertise the service "adminTS" or similar so there is a link in mesh status to access it across the mesh.
N7JYS
UBNT TS

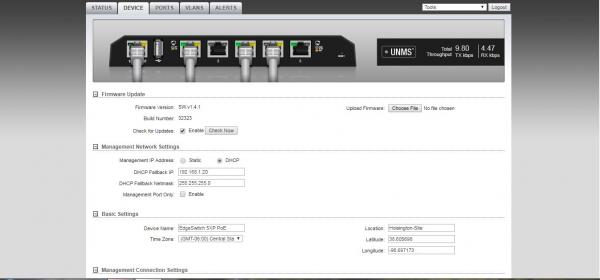

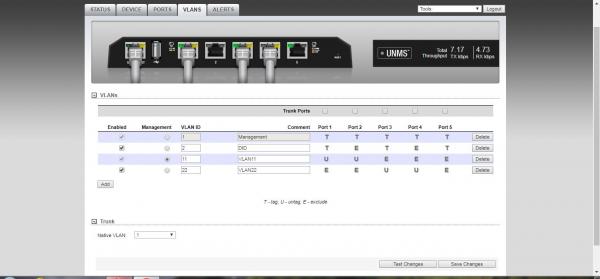

So with the TS Managment  in DHCP mode and slected on VLAN11, then any AREDN Node pluged into port 1 or 2 on the TS will supply a 10.x.x.x address
to the TS for managment.? This should then show up in the Node's Port Forwarding,DHCP,and Services, page? Just want to make sure I understand this process.

Eric
Image Attachments:
N7JYS
UBNT Tough Switch
What  is the port # in the service address url thit is needed for the TS? And on the Device page of the TS is there a tcp port that needs to be enabled?

Eric
K5DLQ
K5DLQ's picture
probably 80   (standard http
probably 80   (standard http port for your browser).
N7JYS
UBNT Tough Switch
Ok up and running! This is very nice! Thanks for all the help.

Eric


ke6bxt
ke6bxt's picture
With internet access:
