Tunnel help please

3 posts / 0 new
Last post
WB8EVI
Tunnel help please
I received a request to establish a node to node tunnel.  I have not done that before, and we can't seem to get it to work.  I have my node connected to my supernode, and the supernode has working tunnels to other supernodes.  Please email me:  wb8evi@gmail.com if you can lend a hand.

Thanks
Mike
nc8q
nc8q's picture
Tunnel help please (super? .vs. regular?)
Hi, Mike:

I browsed WB8EVI-SUPERNODE-SC and saw what appeared to be
some supernodes and a regular node (WB8EVI-RKM2-GardenCity) tunneled.
Supernodes may only tunnel with other supernodes and
may DtD link with regular nodes.
I am not seeing a DtD link.

Additionally, I was wondering why you created a supernode to service a LAN of only 1 regular node.

73, Chuck

nc8q
nc8q's picture
Tunnel help please (super? .vs. regular?)
Hi, Mike:

I browsed WB8EVI-SUPERNODE-SC and saw what appeared to be
some supernodes and a regular node (WB8EVI-RKM2-GardenCity) tunneled.
Supernodes may only tunnel with other supernodes and
may DtD link with regular nodes.
I am not seeing a DtD link.

Additionally, I was wondering why you created a supernode to service a LAN of 1 regular node.

73, Chuck

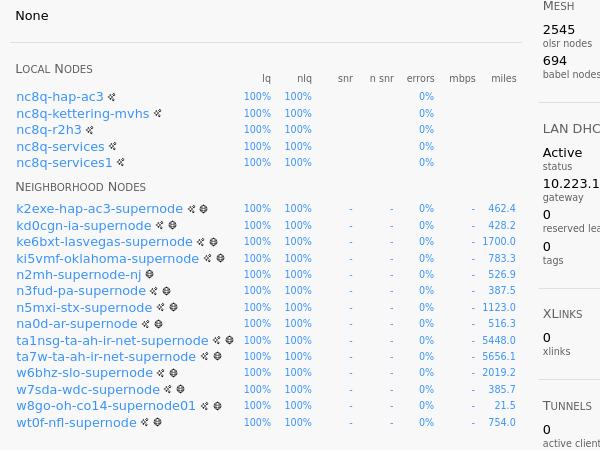

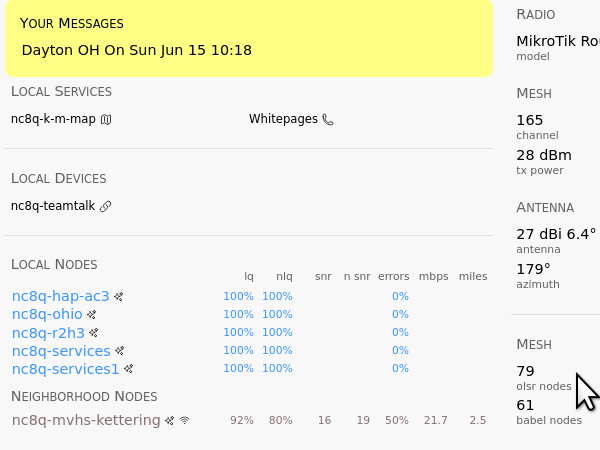

Attached: Image of sample supernode and sample small LAN of only 79 nodes.
