TP-Link CPE510 V3.8 Support

69 posts / 0 new
Last post
KK4ZUZ
I have submitted my PR

I have submitted my PR Request.
Once its approved the device will be available on the ath79 branch for you to download.

KK4ZUZ
The device is now under the

The device is now under the ath79 branch on the nightly builds

N3XKD
Thanks

Thanks

K6RGG
Success with nightly build for TP Link CPE510 v3.8

Howdy all! I successfully configured a newly purchased TP Link CPE510 v3.8 using the nightly build firmware from the following file:
aredn-1476-b452af4-ath79-tplink_cpe510-v3-factory.bin

Thanks so much to all who helped, y'all are amazing!
-Robert K6RGG

KM6SLF
KM6SLF's picture
I tried it with this nightly

I tried it with this nightly and it didn't work, too.

http://downloads.arednmesh.org/snapshots/trunk/targets/ath79/generic/are...

KM6SLF
KM6SLF's picture
I just ordered one of these

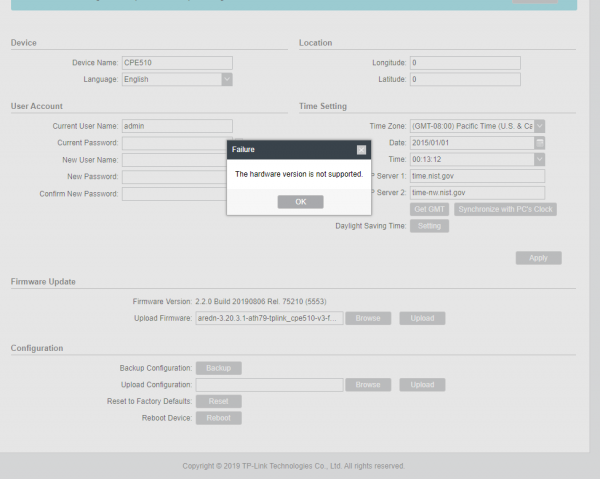

I just ordered one of these before reading the this thread - is it supposed to work with the current stable factory file? I get this error

Image Attachments:
N3XKD
And you have the 3.8 version

And you have the 3.8 version of the device ? Should say it on the sticker or on the box it came in. I have not loaded the newest version yet. There is a means to do the upgrade via the SSH console, and the folks here had directed me to that when going from the stock firmware. You'll have to enable SSH in the stock firmware. But I do not remember having that problem with the fixed firmware. If it fails, You should still be able to recover the device with the original firmware if you get a copy of it. I'll dig out one of these nodes and take a look at upgrading one to the currently nightly and let you know how that goes. I'm sure one of the mods will be along at some point soon also, these folks are very sharp.

OK. Next step is to make sure you know how to recover the Pharos Firmware.
If you know the process we can then try the following
use scp to copy the <nightly>.bin to /tmp on the device
then force it to install with
sysupgrade -v -n -F /tmp/<nightly>.bin

KM6SLF
KM6SLF's picture
My mistake, I misread it. It

My mistake, I misread it. It says:

Model: CPE510(US) Ver: 3.28

In the PHAROS information it says:

Device Model:
CPE510 v3.20
KM6SLF
KM6SLF's picture
And thank you very much for

And thank you very much for your kind offer to help. I had another version of this device that I bought a few weeks ago, and it flashed the AREDN firmware on the first try without issue.

KM6SLF
KM6SLF's picture
Is enabling SSH as simple as

Is enabling SSH as simple as checking the box in the management screen?

N3XKD
It is indeed

It is indeed

KM6SLF
KM6SLF's picture
I downlaoded factory firmware

I downlaoded factory firmware from here:
https://www.tp-link.com/ca/support/download/cpe510/v3.28/#Firmware

and enabled SSH.

Any tips on flashing the AREDN firmware?

N3XKD
Try the nightly build and use

Try the nightly build and use something like winscp to copy that file to the /tmp directory on the unit and then the following command should get the upgrade started. <nightly> needs to be replaced with the actual file name. Make sense ? The device will reboot like twice while it upgrades and it will take a few minutes to complete. Just so that you understand, if this fails, it could leave the unit in a state where you will need to tftp boot it with the original firmware, if you aren't comfortable with that, I would hesitate doing it.

sysupgrade -v -n -F /tmp/<nightly>.bin

KM6SLF
KM6SLF's picture
Thanks. I'll give it a shot

Thanks. I'll give it a shot and will see how it goes. I've flashed firmware to Ubiquiti devices using TFTP so I think I can manage it if I need to.

KM6SLF
KM6SLF's picture
I'm able to see the device

I'm able to see the device using WinSCP, but get an error when I try to transfer a file to the tmp directory.
Cannot execute SCP to start transfer. Please make sure that SCP is installed on the server and path to it is included in PATH. You may also try SFTP instead of SCP.
Command failed with return code 1.

What am I missing? Is my PC the server in this scenario? or the CPE510?

AB7PA
PC is the server for TPLink and Mikrotik
KM6SLF
KM6SLF's picture
I'll give it a shot! Thanks!

I'll give it a shot! Thanks!

KM6SLF
KM6SLF's picture
The alternative process

The alternative process worked! Thanks!
