Question about Radios and Antennas menu

2 posts / 0 new
Last post
K7EOK
Question about Radios and Antennas menu
Hi folks,

In the firmware when logged in as admin, there is a Radios and Antennas submenu.  One of the boxes is labeled Maximum Distance.

Does this just inform you the maximum distance of existing users, or can you set it to limit the maximum distance that your node will accept a connection?

Ed
kf7yrs
the max distance it will try to connect.

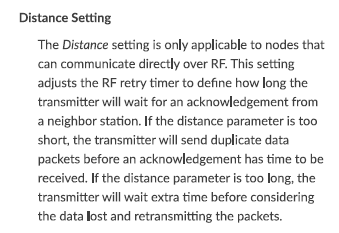

I'm still using 3.24.10,0, but on that and previous firmware it was the maximum distance the node would try to connect to stations.  It is not a sharp boundary, but the radio will tend to ignore signals from beyond this range.  I know since having this setting wrong (10 m for a 17 m path) really compromised some of my links.  They might work sometimes and then not others.  Once I read (in the old docs, the ones that are now gone) what this setting is for, I pay attention to it and the previously poor links are now OK.    Lee
Image Attachments:
