Hi, I'm trying to get linked up with the SLO County AREDN network but I'm having some issues. I have an hAP AC Lite (kn6nk-templeton-core) and a LHG-5nd (kn6nk-templeton-uplink). The "core" and "uplink" devices are connected via Ethernet. The "core" router also has a WAN link to the Internet. "Uplink" has a wifi link to another node but the LQ value fluctuates wildly despite a solid 26-29dB SNR and the NLQ value is almost always 0%. Occasionally NLQ will jump up and I'll get OLSR updates from the wifi neighbor node (indicated by "host entries" increasing significantly) and I can resolve .local.mesh hostnames, but the "Remote Nodes" section stays empty. Additionally none of those updates are passed from the "uplink" device to the "core" router.

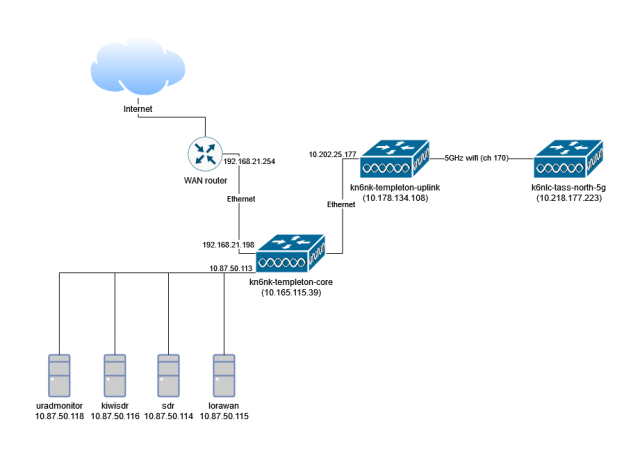

I've attached a network diagram, and the support files from my two AREDN devices. Any insights would be appreciated. Thanks!
![](/sites/default/files/sites/default/files/pictures/user-KN6NK/kn6nk_mesh.png)
I've attached a network diagram, and the support files from my two AREDN devices. Any insights would be appreciated. Thanks!
![](/sites/default/files/sites/default/files/pictures/user-KN6NK/kn6nk_mesh.png)
Orv W6BI
