New SXTsq 5 flash issues

32 posts / 0 new
Last post
NH6HI
NH6HI's picture
New SXTsq 5 flash issues

Aloha,
Just picked up a pair of SXTsq 5 to play with and am not able to do the final flash. I get the
BAD GATEWAY
THE PROCESS DID NOT PRODUCE ANY RESPONSE screen like on the other earlier threads.

I've tried both the current stable and the current nightly build (3.20.3.1  /  1710-437)
Device info:
ID # RBSXTsq5HPnD
serial number ends with  /025/r2
INTL EU version

Any insight appreciated

Support file attached

Jim NH6HI

Support File Attachment:
AE6XE
AE6XE's picture
Jim,  ah oh.    Something has

Jim,  ah oh.    Something has changed with recent manufactured devices with the LHG motherboards, which this device has.   However, I wouldn't expect the bad gateway error, rather it should flash, then when it reboots, not respond.   You may need to do the procedure to scp the image to /tmp and manually do the sysupgrade to get that far?

While the device boots AREDN from RAM and everything looks good, once AREDN is put on the flash it is not booting.    I've been looking at this, and ended up taking some tools to an SXT to gain access to the serial console -- I had to destroy the plastic case.   (No way to snap it apart :(  .)   Subsequently, I found out that Mikrotik does not activate the serial console when the bootloader is  running and working to load the kernel.   ...so we are blind and can't see why there is a failure.

Openwrt releases are also affected, and I started dialog with other developers.  So far, no one has figured out what to do.

Anyone considering purchasing a new SXT or LHG device should hold back on purchasing until this problem is solved.   Look for a used model.

Joe AE6XE

NH6HI
NH6HI's picture
Bummer!

Aloha Joe,
With the same purchase, I got the MikroTik LHG XL 2RBLHG-2nD-XL. Am I going to have the same issue with that too? Well, I'm going to giver a go and let you know.

Wish I had a programming brain like you. I love a challenge but code scrambles my brain!
You would think these manufactures would make life easier for outfits like AREDN but maybe the sales just aren't there. I know I've put quite a few shekels in their pockets in the last couple years.

Jim NH6HI



AE6XE
AE6XE's picture
In today's OpenWrt chatter,

In today's OpenWrt chatter, someone submitted a patch that fits our symptoms.   I'll prepare test images.   cross your fingers...

Joe

Date: Mon, 17 Aug 2020 12:44:13 +0200
From: Thibaut VAR?NE <hacks@slashdirt.org>
To: openwrt-devel@lists.openwrt.org
Subject: [PATCH] ath79: mikrotik: erase firmware on SPI NOR devices
        before install

On Mikrotik SPI NOR devices, the firmware partition must be erased when flashing
from stock firmware, otherwise leftover bits (in particular a kernel signature)
can trigger a boot loop.

When booted from initramfs (the only way to install OpenWRT on these devices),
this patch unconditionally erases the firmware partition in the do_upgrade()
stage for all supported SPI NOR devices.

This is forward-ported from ed49d0876 and 20452a8db

Signed-off-by: Thibaut VAR?NE <hacks@slashdirt.org>
---
 target/linux/ath79/mikrotik/base-files/lib/upgrade/platform.sh | 2 ++
 1 file changed, 2 insertions(+)

diff --git a/target/linux/ath79/mikrotik/base-files/lib/upgrade/platform.sh b/target/linux/ath79/mikrotik/base-files/lib/upgrade/platform.sh
index d79bd03af5..d7fac35708 100644
--- a/target/linux/ath79/mikrotik/base-files/lib/upgrade/platform.sh
+++ b/target/linux/ath79/mikrotik/base-files/lib/upgrade/platform.sh
@@ -38,6 +38,8 @@ platform_do_upgrade() {
                platform_do_upgrade_mikrotik_nand "$1"
                ;;
        *)
+               # NOR devices: erase firmware if booted from initramfs
+               [ -z "$(rootfs_type)" ] && mtd erase firmware
                default_do_upgrade "$1"
                ;;
        esac
--

AB7PA
That sounds promising

Looking forward to what you discover on this.  Hopefully it will resolve the boot loop issue we're seeing.  Thanks very much, Joe.

AE6XE
AE6XE's picture
new images uploaded,  please

new images uploaded,  please remove the prior, and try these images -- hopefully solving the boot loop:
https://drive.google.com/drive/folders/10UW4FLmmvw4jMclruJWD5fzn3xpEDcud...

Joe AE6XE

NH6HI
NH6HI's picture
2.4 good to go

Looks like I dodged the bullet on the LHG. It has a 2019/12/17 date on the box and it took the flash.

Jim NH6HI

AE6XE
AE6XE's picture
Jim,  I've discovered your

Jim,  I've discovered your device's issue is different. Periodically we see  Mikrotik change the string that identifies a model.  In your case:

before: "SXTsq 5HPnD"
now:     "SXTsq5HPnD"

(the space was removed :) .)    I'll get an image available to try shortly.   This is why you are getting the "bad gateway address" error.

Joe AE6XE

NH6HI
NH6HI's picture
Mahalo

I'll be happy to do the test on my end. Jim NH6HI

AE6XE
AE6XE's picture
Try these test images:

Try these test images:

(link will only be usable until changes pushed into a nightly build.)
https://drive.google.com/drive/folders/10UW4FLmmvw4jMclruJWD5fzn3xpEDcud...

Joe AE6XE

NH6HI
NH6HI's picture
No joy!

Aloha Joe,
All seemed well till I loaded in the .bin file. Blue power led was on, yellow led next t it was on, last yellow led was blinking, it did a first reset. The yellow led next to the blue blinks and went out. last yellow led blinked a few times and only the blue was left on. Waited 5 minutes but no joy accessing the SXT. Tried a couple times on both units I bought. The "Redirecting to status page comes up then times out. They didn't revert back to the mikrotik software, even with a reset.
Support data file attached for your inspection.

Jim NH6HI

Support File Attachments:
AE6XE
AE6XE's picture
Jim,  suspect that we got

Jim,  suspect that we got over one hurdle, there's one more to go.  The other symptom of newer devices going into a reboot loop after flashing with AREDN appears to fit the light pattern you are seeing.   I should be able to create images tonight with the patch we hope will address.

Joe AE6XE

NH6HI
NH6HI's picture
Yep!

That's exactly what's happening. Watching the Ethernet lights on my dumb switch go on and off seems to indicate that.
Aloha & Mahalo for what you do Joe

Jim NH6HI

NH6HI
NH6HI's picture
BINGO!

Aloha Joe,
That was the magic build. It's up and running. I haven't tested everything but it takes a callsign and when that was in, I changed the bandwidth to 10mhz from 5mhz and they both seems to be happy. I have included the support file incase you wanted to check it out.

One question...... will the !!!! UNTESTED HARDWARE !!!! go away with the nightly build or is this something that's going to be around for a while?
73 & Aloha
Jim NH6HI

Support File Attachments:
nc8q
nc8q's picture
Is this the recent 'boot loop' fix mentioned in #6 ?

Reference: https://www.arednmesh.org/comment/15867#comment-15867

May we proceed to purchase Mikrotik LHGs/SXTsqs ?

Chuck


AE6XE
AE6XE's picture
Chuck,  based on Jim's

Chuck,  based on Jim's results, the light in no longer RED.    But since we only have one device and one test, I'd move the light to YELLOW, to proceed with caution.  it looks GREEN, however.

Joe AE6XE

NH6HI
NH6HI's picture
1 device

When you say one device, are you referring to the SXT? I have 2. Or do you mean 1 of 2, the second being the LHG?

If .you would like, I can send the file for the 2nd SXT.

Jim

AE6XE
AE6XE's picture
We're looking for further

We're looking for further testing on devices that have been stuck with the boot-loop problem, to have confidence all these devices are indeed now working.  As I recall, I think your 2nd device, an LHG, had already loaded, "dodged the bullet", and did not have these symptoms, presumably was an older manufacture date.      If you have and received 2 SXT identical devices, we'll count that as 1 for now.

AE6XE
AE6XE's picture
D'oh,  one more minor change

D'oh,  one more minor change I forgot to make, forthcoming, to remove the untested hardware message.

joe

AE6XE
AE6XE's picture
Jim, should be one last try,

Jim, should be one last try, download the images from the prior link.   Looking to confirm the untested hardware goes away and all is well.

joe AE6XE

NH6HI
NH6HI's picture
This one?
NH6HI
NH6HI's picture
I tried this one

I tried this one, https://drive.google.com/drive/folders/10UW4FLmmvw4jMclruJWD5fzn3xpEDcud
The message is still there. It has always been there from the beginning.

Jim

AE6XE
AE6XE's picture
Jim,  I reloaded the images

Jim,  I reloaded the images and double-checked everything on my end.   Re-download from here and give a try:

https://drive.google.com/drive/folders/10UW4FLmmvw4jMclruJWD5fzn3xpEDcud...

Joe AE6XE

NH6HI
NH6HI's picture
That was the silver bullet

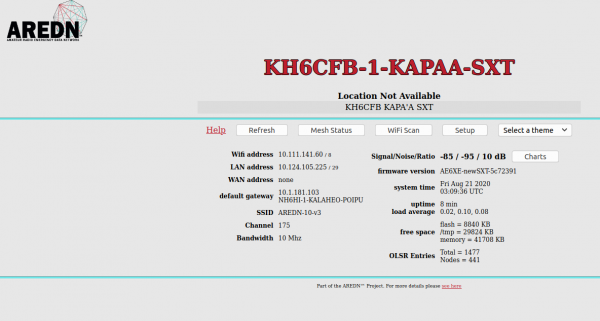

Aloha Joe,
Worked like a silver bullet. Looks good to go. Is this going to be in the next Nightly Build? If so, I'll wait for it to come out to flash the 2nd one
Big Mahalo for what you do!

Jim NH6HI

Image Attachments:
AE6XE
AE6XE's picture
Yes, I'll commit the code

Yes, I'll commit the code today and expected to be in nightly build tomorrow.

Joe AE6XE

NH6HI
NH6HI's picture
Nightly build

Just re-flashed #2 SXT and with AREDN-1763 and UNTESTED HARDWARE still shows up. Reflashed with the last AE6XE-new-SXT-5c72391 and the message is gone.

Jim NH6HI

AE6XE
AE6XE's picture
My internet has been out

My internet has been out since Friday, and unable to upload changes. Hopefully 1st of the week. Rural area isn't that fast or reliable here :) .

nc8q
nc8q's picture
internet access ia dial-up

Hi, Joe:

My ISP, Earthlink, still offers dial-up access. Does yours?
Of course, you would need a dial-up modem and a home phone device. :-|

Chuck

K6CCC
K6CCC's picture
Dial-up

Dial-up yes, but I'm not sure I would want to upload or download multi-megabyte files over dial-up!  Until recently my Dad still had dial-up (also from Earthlink).  Best he could get was about 24k bps because of the phone line.  That comes to almost 6 minutes per Megabyte.  OK, I am spoiled with my 225M bps at home.


nc8q
nc8q's picture
Best he could get was about 24k bps because of the phone line.

Jim:
Oh, don't we remember those days.
My son-in-law was a telco lineman and, magically, I ended up with a copper pair good for 48.666 kbps minimum
although I was 18k feet from the C.O.
I have had a cheap ($42/mo) Earthlink re-sale cable modem account since ~2007, served by the local cable company.
This is currently 2/22 Mbps up/down. :-|
My mesh connection is 22/22. ;-)

 Recently I began renting a single core connected to the internet through a larger 'tube' than I have at home;
a Linode/Nanode. Perhaps, if Joe would be editing a few text files on a remote server, something of this sort could
speed up the multiple large file transfers.

Chuck



NH6HI
NH6HI's picture
just a thought

Just thinking but can't you upload it through the mesh?

Jim NH6HI

AE6XE
AE6XE's picture
I'm at QTH 2 in a rural area

I'm at QTH 2 in a rural area -- no mesh around here :( .   Now if I was at QTH 1, yes no issue to access  over the mesh.    I'm hoping when Starlink expands coverage southerly, they will call me up for the beta program in my area -- I'm on the list and getting updates now and then.    Internet goes down here every month or every other month.  The outage always seem to occur exactly on a Friday, so they never do anything until the next Monday+ :) .
