NanoBeam Issues

3 posts / 0 new
Last post
kc0wkp
kc0wkp's picture
NanoBeam Issues
Has anyone seen issues with the NanoBeam M5-19 and the 3.19.3.0 load. I have tried loading the Factory load in several times but post reboot the computer is failing to get an IP from the radio. The TFTP client indicated that it was successful and I have last LED lit. I am wondering if anyone else has seen this. I have had no issues flashing some powerbeams and M5-16 Nanobeams today.
AE6XE
AE6XE's picture
Correct firmware?
Check to confirm tftp upload of the "loco-m-xw" image?   It is a known issue if using a different image, the physical ethernet ports may not function (due to these other images don't have the right driver).    If this is the situation, then look for a standard Access Point SSID for AREDN.  You can connect to it and upload the correct image from the Administration page.

Joe AE6XE
kc0wkp
kc0wkp's picture
So originally when I was

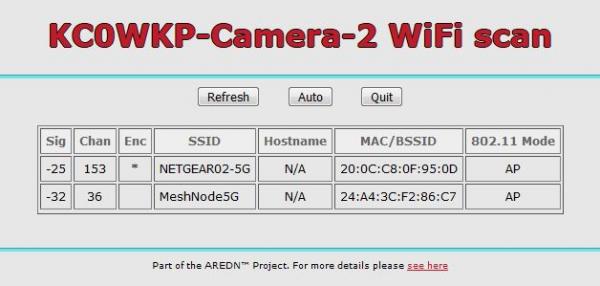

So originally when I was unable to get into the node I reloaded the FW via TFTP, however to no avail. I have had some time to see if I can find it over the air and this it the only thing I have found so far. During a WiFi scan I can see the node at 20Mhz on channel 36. This doesn't really make sense though.

Also some of the other nanobeams will sometimes turn off DHCP randomly.


Image Attachments:
