Nano station m5 bricked on 3.20

11 posts / 0 new
Last post
ki5edt
Nano station m5 bricked on 3.20

I have a Nanostation m5 that ran AREDN 3.19 fine for nearly 1 year  . So the new software came out last week and I did upgrades to 3 of my 10 various branded nodes and the nanostation m5 NS5N and now it won't boot.

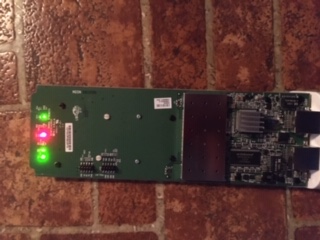

It sits there there with the power light stays solid and the 2 lan ports and the 2nd and 3rd signal lights flash quickly and go out at the same time.
 Any ideas?

K5DLQ
K5DLQ's picture
do you have a Nanostation M5

do you have a Nanostation M5 (XM) or (XW)?
Did you verify the correct firmware file?
Have you tried to do a TFTP load of the appropriate "aredn-factory.bin" file?

ki5edt
I used Windows TFTP client

I used Windows TFTP client  with all the Nanastation m5 files and get failure "error on server" firmware check failed.
Is there any way to tell what ver Nanaostation I have by SerNumber or Hardware ?


ki5edt
I used Windows TFTP client

I used Windows TFTP client  with all the Nanastation m5 files and get failure "error on server" firmware check failed.
Is there any way to tell what ver Nanaostation I have by SerNumber or Hardware ?


Image Attachments:
K5DLQ
K5DLQ's picture
You might want to try to TFTP

You might want to try to TFTP install the Ubiquiti AirOS firmware for XM and XW devices.   It will only let you load the correct one.   That should get the device back to a functional state (with AirOS).   That's one way to tell which version that you have.

nc8q
nc8q's picture
Nanostation M5 (XM or XW)

One can guess by 'test date' on package (box).

You did not mention which firmware you were TFTP'ing.

File: aredn-3.20.3.0-ath79-ubnt_nanostation-m-factory.bin

File: aredn-3.20.3.0-ath79-ubnt_nanostation-m-xw-factory.bin

Based on how old the device is...before or after November 2917...
Try the m-factory if older...the m-xw-factory if newer.

One or the other should work.

Chuck

ki5edt
Thank you gentlemen. I

Thank you gentlemen. I figured it out with the " Pitch til you win" methodology. it was an XM and I used the factory load and it took it.
Thanks again for you help
K5GZL


nc8q
nc8q's picture
Permanent marker

Use a permanent marker and identify the device. ;-)

w6bi
w6bi's picture


yes  smiley

NM7B
Way to identify XW or XM remotely?

Is there a way to identify if a Ubiquiti node is XW or XM remotely, like telnet'ing in and using a command line?

Thank you and 73's',
Collier
NM7B

NM7B
Disregard - using data.txt and Admin page

I determined that I could identity XM vs XW from the Admin page as well as from the data.txt files in the diagnostic data dumps.

Thank you and 73's,
Collier
NM7B
