Mikrotik Hap Lite & CPE510 - dtd - how does it work ?

6 posts / 0 new
Last post
F1AMU
Mikrotik Hap Lite & CPE510 - dtd - how does it work ?
Hi Everybody :-) Dear Om's

Well, I'm working but it's going slowly...

My first question is about the CPE510 : I wan't to connect it to the net and have an access from my computer but it's only possible when I have plugged in directly to the Ethernet card. (With no internet access too dues to the address).. So I've tried to put (it's my second question) the Mikrotik Hap Port 1 to LAN/WAN, and the CPE510 on port 5 to activate dtd (Poe is ok) but the led 5 remind red and I can't have access to the CPE510 (Mikrotik hap is open with its C class ip address in my browser). Is the CPE510 only for a direct access with a 10.xxx.xxx.xxx address (eg A Class) ?  I don't understand... If you could help me... Thanks a lot. If it can help me : I've got a Netgear GS105ev2 too...

Thanks again,

73's F1AMU
F1AMU
Config CPE510/Mikrotik HAP/GS105Ev2 vlan

Hi Everybody.

It's seems to be a problem of VLAN.

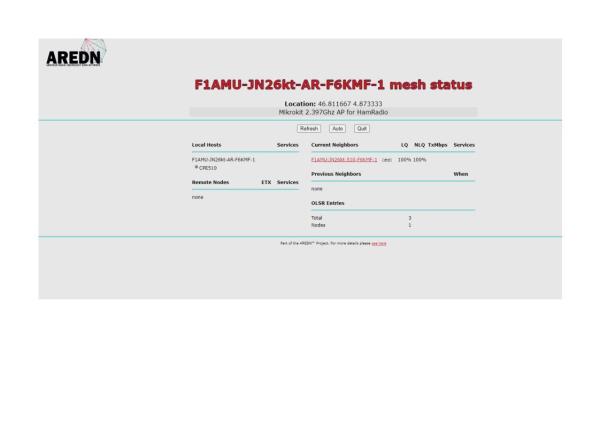

I've tried this configuration (https://www.arednmesh.org/content/gs105e-1-lan-3-node-1-wan) for my GS105v2, but I doesn't see my CPE510 (it's not have a wan address). I see it on mesh status but can't address it directly from my browser. I've plugged the Port 2 GS to Port 5 Hap, Port 3 GS to CPE510 Port, and Port 1 Hap to Provider Router LAN Port.

Thanks for your help.

73 F1AMU




Image Attachments:
AB7PA
no vlan switch needed

F1AMU
Config CPE510/Mikrotik HAP/GS105Ev2 vlan
Thanks Dear Om.

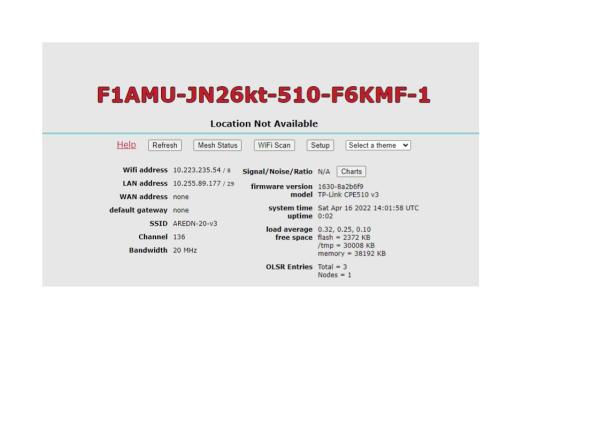

I've got access to my CPE from Hap DDevice but the CPE has not a WAN address...

Is it possible ?

Thanks,

73' F1AMU
Image Attachments:
nc8q
nc8q's picture
CPE510 : I wan't to connect it to the net

"CPE510 : I wan't to connect it to the net"
May I rephrase
"CPE510 : I want to connect it to the internet"

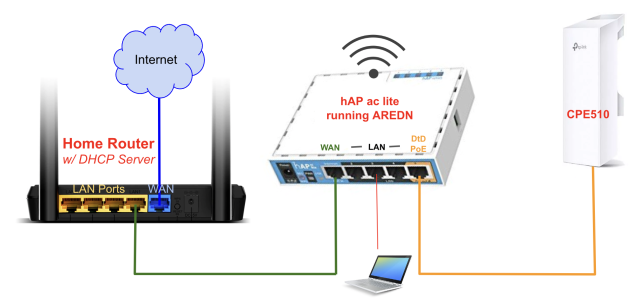

+1 to AB7PA for posting an example of a typical AREDN station with
home router, hAP, CPE-510, and PC.
The PC and hAP have access to internet.
-----

"CPE510 : I want to connect it to the internet and have an access from my computer'.

Now you need the gs-105v2 and as configured as you chose: https://www.arednmesh.org/content/gs105e-1-lan-3-node-1-wan
Port 1 is CPE-510, port 2 is PC, port 3 or 4 is hAP(port 5), and port 5 goes to internet router.
If you want the hAP to also have internet access, add another ethernet cable from hAP port 1 to internet router.

Why do you want the CPE-510 to have access to the internet?

73, Chuck



F1AMU
Hi Chuck, Dear Om nc8q,
Hi Chuck, Dear Om nc8q,

You must rephrase me, my English is not good :-)
It's all ok for me now and for my students today !

Thanks a lot,

73' F1AMU - Philippe
