In general MikroTik doesn't perform as well on 5MHz bandwidth.
I'm not sure if it's the MikroTik's front end filters or what other hardware causes this, but in many cases MikroTik devices don't perform well on 5GHz bandwidth, especially outside of regular WiFi bands. Even when it works, it seems to be degraded compared to the when 10 or 20MHz bandwidth is used on the same node.
I just wanted to thank Joe and the entire team for this mikrotik firmware version. It's exactly what I needed to consolidate three devices into a single unit. Awesome. Many thanks.
glad all is working well. I have the 5GHz mesh access point config settings all worked out and running at my QTH. I'm getting closer to submitting into the nightly build and out for everyone to use.
"LT", K6RUN, gave us a demo of his work on this a couple weeks ago. It's going to be nice. I've come to realize you just can't rush volunteer development.
Steps 11 and 12 should be reversed. First you log into your laptop in a directory that contains the file to be copied (I use /tftp). Then you copy the file to the device. With my setup I change that command line by removing the forward slash (/) from in front of tmp/rb.bin so it looks like this: root@192.168.1.1:tmp/rb.bin
Once the file is copied you then telnet to the device. When doing so I find that I am one directory above the root of the device so I do a: cd / to get to root. Then I use this command: sysupgrade -n tmp/rb.bin
It is important to access the node setup via http://192.168.1.1:8080 or via telnet in step 11 first and login. If not, then scp command in step 12 won't succeed, necessary things for scp to work would not be initialized. This is why telnet is used earlier than actually needed to do the sysupgrade command.
It is usually a good idea to reference files with an absolute path to avoid ambiguity and risk of failing. When there isn't a leading "/", then the pathname is relative from the current directory. The default login directory is "/tmp". the path "root@192.168.1.1:tmp/rb.bin" translates to an absolute path of "/tmp/tmp/rb.bin" and since "/tmp/tmp" doesn't exist, you should be getting an error.
So far I've been doing MikroTik devices with a raspberrypi and have been unable to use the scp command after telneting to the device. I must have been doing something wrong as it appears I do have a "/tmp/tmp" path. I've attached a ssh screenshot of the LHG5 I did yesterday. Would you please tell me if I should go back and redo the six devices I have done so far?
As long as the sysupgrade command doesn't tell you "can't find the .bin file...", then it is working. Once it reboots and the firmware is in flash, then all is well. Just continue on with setup for the first time. If you've gotten through setup, saved, rebooted, and AREDN is still there, then all is well.
let's assume you coped down the current nightly build to a location on your laptop, and the filename is "aredn-438-a997ef9-mikrotik-rb-nor-flash-16M-ac-sysupgrade.bin". Then, if your current directory is the same location, the "ls" command will show this .bin file, then the following command should work:
So I started from scratch, using the nightly build this time so I could basically copy/paste the command provided. Yet again I received the "no such file or directory". I was able to confirm the file was there by using ls as suggested. But then I realized that this entire time I was executing the scp command under the telnet session to the node(per instructions) and not pushing the file from laptop itself. Executed the scp command from a different terminal window and boom, it worked.
I used Linux Mint, so Im not sure if this applies across different linux distros.
Could you please add a note to Step # 12 to be executed from a new terminal?
Stop at #11 and try this...we did two different units:
After logging into the telnet 192.168.1.1 and entering the user/password, I opened the browser in this case FireFox from the same laptop and connected using the localnode:8080 then directly to the setup root/password and direct to the administrative page. Important UNCHECK Keep Settings as it gets lost and will crash. Then browse to your favorite Nightly build or hAP firmware and Upload and wait for the load (about 3 min)...your done...Reboot! The rest is the same as any new firmware setup.
Now, I didn't try just logging into the localnode before the telnet step but that could eliminate another step!
Willis KB1JFG and I found security issues with the steps after the Telnet causing Ubuntu Linux machines, and may be others, to respond to the changes as an attack on the system and disconnect! So if that caused anyone to throw in the towel follow the new steps!
Give a hard job to a lazy man, he will find an easy way to do it!
There may be something else going on, e.g. after typing sysupgrade command line, the device by design will disconnect your ssh and telnet sessions as it goes though the upgrade process. It is cleaning up resources or RAM to ensure the job is successful. I suspect most users will prefer the UI approach, and the instructions are updated accordingly. However the command line options, for those that prefer command line over UI, still work. This is the method in use to automate from a RasPi.
Using the RPI following 11 steps from how to install Mikrotik node on hap ac lite 952Ui-5ac2nd-US.
downloaded elf and bin files to rpi tftp directory
configured RPI for 192.168.10
confirmed with ifconfig (using root terminal session)
copied from forum the dsnmsg command line, changed port name and signon id
started dsnmasq, did reset on hap ac lite
watched log messages (see below)
pi@raspberrypi:~ $ sudo dnsmasq -i enxb827eb31e919 --dhcp-range=192.168.1.100,192.168.1.200 --dhcp-boot=rb.elf --enable-tftp --tftp-root=/tftp/ -d -u pi -p0 -K --log-dhcp --bootp-dynamic
dnsmasq: started, version 2.76 DNS disabled
dnsmasq: compile time options: IPv6 GNU-getopt DBus i18n IDN DHCP DHCPv6 no-Lua TFTP conntrack ipset auth DNSSEC loop-detect inotify
dnsmasq-dhcp: DHCP, IP range 192.168.1.100 -- 192.168.1.200, lease time 1h
dnsmasq-tftp: TFTP root is /tftp/
dnsmasq-dhcp: 5066965 available DHCP range: 192.168.1.100 -- 192.168.1.200
dnsmasq-dhcp: 5066965 client provides name: MikroTik
dnsmasq-dhcp: 5066965 DHCPDISCOVER(enxb827eb31e919) cc:2d:e0:c1:de:ef
dnsmasq-dhcp: 5066965 tags: enxb827eb31e919
dnsmasq-dhcp: 5066965 DHCPOFFER(enxb827eb31e919) 192.168.1.150 cc:2d:e0:c1:de:ef
dnsmasq-dhcp: 5066965 requested options: 1:netmask, 121:classless-static-route, 3:router,
dnsmasq-dhcp: 5066965 requested options: 33:static-route, 6:dns-server, 42:ntp-server,
dnsmasq-dhcp: 5066965 requested options: 138, 43:vendor-encap
dnsmasq-dhcp: 5066965 bootfile name: rb.elf
dnsmasq-dhcp: 5066965 next server: 192.168.1.10
dnsmasq-dhcp: 5066965 broadcast response
dnsmasq-dhcp: 5066965 sent size: 1 option: 53 message-type 2
dnsmasq-dhcp: 5066965 sent size: 4 option: 54 server-identifier 192.168.1.10
dnsmasq-dhcp: 5066965 sent size: 4 option: 51 lease-time 1h
dnsmasq-dhcp: 5066965 sent size: 4 option: 58 T1 30m
dnsmasq-dhcp: 5066965 sent size: 4 option: 59 T2 52m30s
dnsmasq-dhcp: 5066965 sent size: 4 option: 1 netmask 255.255.255.0
dnsmasq-dhcp: 5066965 sent size: 4 option: 28 broadcast 192.168.1.255
dnsmasq-dhcp: 5066965 sent size: 4 option: 3 router 192.168.1.10
dnsmasq-dhcp: 5066965 available DHCP range: 192.168.1.100 -- 192.168.1.200
dnsmasq-dhcp: 5066965 client provides name: MikroTik
dnsmasq-dhcp: 5066965 DHCPREQUEST(enxb827eb31e919) 192.168.1.150 cc:2d:e0:c1:de:ef
dnsmasq-dhcp: 5066965 tags: enxb827eb31e919
dnsmasq-dhcp: 5066965 DHCPACK(enxb827eb31e919) 192.168.1.150 cc:2d:e0:c1:de:ef MikroTik
dnsmasq-dhcp: 5066965 requested options: 1:netmask, 121:classless-static-route, 3:router,
dnsmasq-dhcp: 5066965 requested options: 33:static-route, 6:dns-server, 42:ntp-server,
dnsmasq-dhcp: 5066965 requested options: 138, 43:vendor-encap
dnsmasq-dhcp: 5066965 bootfile name: rb.elf
dnsmasq-dhcp: 5066965 next server: 192.168.1.10
dnsmasq-dhcp: 5066965 broadcast response
dnsmasq-dhcp: 5066965 sent size: 1 option: 53 message-type 5
dnsmasq-dhcp: 5066965 sent size: 4 option: 54 server-identifier 192.168.1.10
dnsmasq-dhcp: 5066965 sent size: 4 option: 51 lease-time 1h
dnsmasq-dhcp: 5066965 sent size: 4 option: 58 T1 30m
dnsmasq-dhcp: 5066965 sent size: 4 option: 59 T2 52m30s
dnsmasq-dhcp: 5066965 sent size: 4 option: 1 netmask 255.255.255.0
dnsmasq-dhcp: 5066965 sent size: 4 option: 28 broadcast 192.168.1.255
dnsmasq-dhcp: 5066965 sent size: 4 option: 3 router 192.168.1.10
^C
messages stop with last line above, waited for 10-15 minutes never saw the router change or reboot
used control c to end session
I can repeat this and it always just stops.....
tried to pick up at step 8 of how-to with No Joy.
Had the same problem. Hold the reset button longer until you see the feedback then let go. You are most likely getting the above after letting go of the reset just after the restart.
Did you try i- eno1 in place of i enxb827eb31e919. i did not see eno1 in my ifconfig. I tried different variations but it worked only when i used this. I am not a Linux user and I'm more like a backyard mechanic, learning, try it and hope it works! I don't think it matters but I am using the international version.
Good luck!
Denis
Denis
I started over this morning, did nothing different go rb.elf sent.
System rebooted
attached laptop but can not connect 192.168.1.1:8080
can ping 192.168.1.1 and localnode.local.mesh
on hap pwr, usr leds are green ... port five led is red

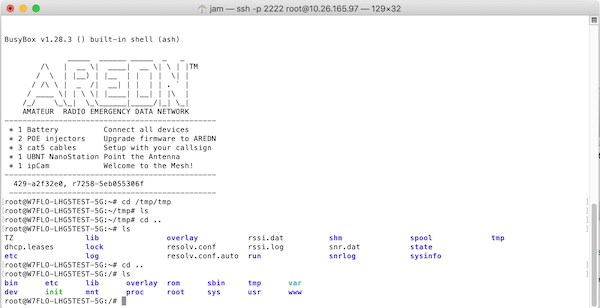

used putty ssh to hap
login worked
in the banner got ---- 465-f062021, r7258-5eb055306f
mike, very odd that the browser does not connect but command line does. Make sure your laptop wifi is turned off, so no confusion. "http://192.168.1.1:8080" should work if the command line access is working. We know now that the hAP is booted and running the rb.elf image, so leave it running for now. The alternative step if the browser is not working is to use winscp to scp copy up the .bin image to /tmp on the mesh node. Once the .bin is copied up, from the command window on the mesh node, just type "sysupgrade -n <filename of .bin file>" wait ~4 min. and should be in firstboot state.
scp/ssh protocol
"bin" file transfer
port on 2222
There's a rasbPi image in the pipeline to automate this process. It is a lot more complex than the ubiquiti equipment.
Getting there...have you shut it down and completely and start the in the first boot state? Just to be sure shutdown the computer so it gets an address from node.
The UI access is possibly broken in this nightly build given other unrelated changes. There is another issue submitted for this build that we are looking at. Try clearing the browser cache. The changes in last nigth's build may require the cache to be cleared, need to investigate further.
You could copy /usr/sbin/uhttpd from another functioning node to this same location on the hAP, then "/etc/init.d/uhttpd restart" to work around this issue for now.
In my case, waiting several minutes after booting and restarting uhttpd worked. In another try, a second reboot worked. Smells like a timing issue, maybe?
I would like to run the hAP lite 952Ui-5ac2nD as part of a portable mesh as described by Trevor K7FPV and replace the AirRouter HP. Is it possible to power the USB without causing any issues? I have noticed that it's on during the boot process. The USB is only used for power to the TP Link and the convenience of using only the POE to power the 3 devices. Is it planed for a future build or something that can be looked at?
Thank you,
Denis KD1HA
Hi Joe. I have build AREDN-477 and it is checked on, no power either way and I checked that before I posted. The POE works when checked on and off when not but the USB is dead. Save Settings was also done in both cases. I also ran the node with both wall wart and PoE.
Maybe you already know this and it is working but it does not hold the Set to Default after a reboot. The check is on and I then tap the Save Setting and then Set to Default or any combination of the above. It's not a big deal to turn it on after but I thought I would report my finding. I can still use it!
I'm trying to install aredn image on device that by all means looks like correct hAP lite 952Ui-5ac2nD.
I managed to upload the .elf file from my Mac computer and it boots. Well, my first issue was that there is red led on port 5, but I found out that this means active poe. What is actually different than in youtube video for windows install is that I get IP on WAN port not LAN.
The problem is that I can't upload the image from the nightly build. I get Bad Getway screen after a short time. I also tried sysupgrade via telnet, but I get the following error:
I think that device is ok and supported, and it should work, but I'm dealing with this just for last two days, so it is possible that I have overlooked something obvious.
Got it. OK, after booting the .elf image into RAM, access the AREDN UI and click on the download support data link at the bottom of the administration page. attach this file back here. This should provide sufficient information to see what is going on. I glossed over, the model # is in the Supported device list, but for some reason this device doesn't report it has the expected model number. This support data will show us what model # it is reporting.
-Damon K9CQB
I just wanted to thank Joe and the entire team for this mikrotik firmware version. It's exactly what I needed to consolidate three devices into a single unit. Awesome. Many thanks.
Joe AE6XE
I have one running without an issue and another arriving tomorrow!
Looking forward to the 5GHz AP!
Thanks Joe and company!
Denis KD1HA
I heard rumors there may be a Raspberry Pi installer image for Mikrotik in the works. Any idea when we could expect this?
Andre, K6AH
You guys rock. :)
Could you further explain step #12 Copy up the .bin file. typically this is done, "scp -P 2222 <the .bin file name> root@192.168.1.1:/tmp/rb.bin
I copied the bin file to multiple locations on my laptop and tried sourcing from all of them and still getting "No such file or directory" output.
Steps 11 and 12 should be reversed. First you log into your laptop in a directory that contains the file to be copied (I use /tftp). Then you copy the file to the device. With my setup I change that command line by removing the forward slash (/) from in front of tmp/rb.bin so it looks like this: root@192.168.1.1:tmp/rb.bin
Once the file is copied you then telnet to the device. When doing so I find that I am one directory above the root of the device so I do a: cd / to get to root. Then I use this command: sysupgrade -n tmp/rb.bin
73,
julie
ac0wn
It is usually a good idea to reference files with an absolute path to avoid ambiguity and risk of failing. When there isn't a leading "/", then the pathname is relative from the current directory. The default login directory is "/tmp". the path "root@192.168.1.1:tmp/rb.bin" translates to an absolute path of "/tmp/tmp/rb.bin" and since "/tmp/tmp" doesn't exist, you should be getting an error.
Thank you, Joe for the great information!
So far I've been doing MikroTik devices with a raspberrypi and have been unable to use the scp command after telneting to the device. I must have been doing something wrong as it appears I do have a "/tmp/tmp" path. I've attached a ssh screenshot of the LHG5 I did yesterday. Would you please tell me if I should go back and redo the six devices I have done so far?
Many thanks,
julie
ac0wn
let's assume you coped down the current nightly build to a location on your laptop, and the filename is "aredn-438-a997ef9-mikrotik-rb-nor-flash-16M-ac-sysupgrade.bin". Then, if your current directory is the same location, the "ls" command will show this .bin file, then the following command should work:
"scp -P 2222 aredn-438-a997ef9-mikrotik-rb-nor-flash-16M-ac-sysupgrade.bin root@192.168.1.1:/tmp/rb.bin"
I used Linux Mint, so Im not sure if this applies across different linux distros.
Could you please add a note to Step # 12 to be executed from a new terminal?
Joe AE6XE
After logging into the telnet 192.168.1.1 and entering the user/password, I opened the browser in this case FireFox from the same laptop and connected using the localnode:8080 then directly to the setup root/password and direct to the administrative page. Important UNCHECK Keep Settings as it gets lost and will crash. Then browse to your favorite Nightly build or hAP firmware and Upload and wait for the load (about 3 min)...your done...Reboot! The rest is the same as any new firmware setup.
Now, I didn't try just logging into the localnode before the telnet step but that could eliminate another step!
Denis KD1HA
Joe AE6XE
Willis KB1JFG and I found security issues with the steps after the Telnet causing Ubuntu Linux machines, and may be others, to respond to the changes as an attack on the system and disconnect! So if that caused anyone to throw in the towel follow the new steps!
Give a hard job to a lazy man, he will find an easy way to do it!
Denis KD1HA
Joe AE6XE
downloaded elf and bin files to rpi tftp directory
configured RPI for 192.168.10
confirmed with ifconfig (using root terminal session)
copied from forum the dsnmsg command line, changed port name and signon id
started dsnmasq, did reset on hap ac lite
watched log messages (see below)
pi@raspberrypi:~ $ sudo dnsmasq -i enxb827eb31e919 --dhcp-range=192.168.1.100,192.168.1.200 --dhcp-boot=rb.elf --enable-tftp --tftp-root=/tftp/ -d -u pi -p0 -K --log-dhcp --bootp-dynamic
dnsmasq: started, version 2.76 DNS disabled
dnsmasq: compile time options: IPv6 GNU-getopt DBus i18n IDN DHCP DHCPv6 no-Lua TFTP conntrack ipset auth DNSSEC loop-detect inotify
dnsmasq-dhcp: DHCP, IP range 192.168.1.100 -- 192.168.1.200, lease time 1h
dnsmasq-tftp: TFTP root is /tftp/
dnsmasq-dhcp: 5066965 available DHCP range: 192.168.1.100 -- 192.168.1.200
dnsmasq-dhcp: 5066965 client provides name: MikroTik
dnsmasq-dhcp: 5066965 DHCPDISCOVER(enxb827eb31e919) cc:2d:e0:c1:de:ef
dnsmasq-dhcp: 5066965 tags: enxb827eb31e919
dnsmasq-dhcp: 5066965 DHCPOFFER(enxb827eb31e919) 192.168.1.150 cc:2d:e0:c1:de:ef
dnsmasq-dhcp: 5066965 requested options: 1:netmask, 121:classless-static-route, 3:router,
dnsmasq-dhcp: 5066965 requested options: 33:static-route, 6:dns-server, 42:ntp-server,
dnsmasq-dhcp: 5066965 requested options: 138, 43:vendor-encap
dnsmasq-dhcp: 5066965 bootfile name: rb.elf
dnsmasq-dhcp: 5066965 next server: 192.168.1.10
dnsmasq-dhcp: 5066965 broadcast response
dnsmasq-dhcp: 5066965 sent size: 1 option: 53 message-type 2
dnsmasq-dhcp: 5066965 sent size: 4 option: 54 server-identifier 192.168.1.10
dnsmasq-dhcp: 5066965 sent size: 4 option: 51 lease-time 1h
dnsmasq-dhcp: 5066965 sent size: 4 option: 58 T1 30m
dnsmasq-dhcp: 5066965 sent size: 4 option: 59 T2 52m30s
dnsmasq-dhcp: 5066965 sent size: 4 option: 1 netmask 255.255.255.0
dnsmasq-dhcp: 5066965 sent size: 4 option: 28 broadcast 192.168.1.255
dnsmasq-dhcp: 5066965 sent size: 4 option: 3 router 192.168.1.10
dnsmasq-dhcp: 5066965 available DHCP range: 192.168.1.100 -- 192.168.1.200
dnsmasq-dhcp: 5066965 client provides name: MikroTik
dnsmasq-dhcp: 5066965 DHCPREQUEST(enxb827eb31e919) 192.168.1.150 cc:2d:e0:c1:de:ef
dnsmasq-dhcp: 5066965 tags: enxb827eb31e919
dnsmasq-dhcp: 5066965 DHCPACK(enxb827eb31e919) 192.168.1.150 cc:2d:e0:c1:de:ef MikroTik
dnsmasq-dhcp: 5066965 requested options: 1:netmask, 121:classless-static-route, 3:router,
dnsmasq-dhcp: 5066965 requested options: 33:static-route, 6:dns-server, 42:ntp-server,
dnsmasq-dhcp: 5066965 requested options: 138, 43:vendor-encap
dnsmasq-dhcp: 5066965 bootfile name: rb.elf
dnsmasq-dhcp: 5066965 next server: 192.168.1.10
dnsmasq-dhcp: 5066965 broadcast response
dnsmasq-dhcp: 5066965 sent size: 1 option: 53 message-type 5
dnsmasq-dhcp: 5066965 sent size: 4 option: 54 server-identifier 192.168.1.10
dnsmasq-dhcp: 5066965 sent size: 4 option: 51 lease-time 1h
dnsmasq-dhcp: 5066965 sent size: 4 option: 58 T1 30m
dnsmasq-dhcp: 5066965 sent size: 4 option: 59 T2 52m30s
dnsmasq-dhcp: 5066965 sent size: 4 option: 1 netmask 255.255.255.0
dnsmasq-dhcp: 5066965 sent size: 4 option: 28 broadcast 192.168.1.255
dnsmasq-dhcp: 5066965 sent size: 4 option: 3 router 192.168.1.10
^C
messages stop with last line above, waited for 10-15 minutes never saw the router change or reboot
used control c to end session
I can repeat this and it always just stops.....
tried to pick up at step 8 of how-to with No Joy.
what am I not seeing?
regards
Mike
Denis KD1HA
continued to try and it simply will not load the rb.elf file
maybe I will try tomorrow after the dew list is complete.
Thanks Denis for the pointer
regards
mike
Good luck!
Denis
I started over this morning, did nothing different go rb.elf sent.
System rebooted
attached laptop but can not connect 192.168.1.1:8080
can ping 192.168.1.1 and localnode.local.mesh
on hap pwr, usr leds are green ... port five led is red
used putty ssh to hap
login worked
in the banner got ---- 465-f062021, r7258-5eb055306f
so I think something loaded but not sure what ...
should not be this hard for us backyard guys
regards
mike
scp/ssh protocol
"bin" file transfer
port on 2222
There's a rasbPi image in the pipeline to automate this process. It is a lot more complex than the ubiquiti equipment.
Joe AE6XE
I can ping the ip addr and the localnode via cmd line.
I can sign on SSH/putty to 192.168.1.1 P 2222
For kicks I
downloaded the 471 bin file
copied it to tmp dir
did sysupgrade, system accepted and reboot
restart ip
still no browser access, only ssh
below is the dmesg from this session
root@192.168.1.1's password:
BusyBox v1.28.3 () built-in shell (ash)
/\ | __ \| ____| __ \| \ | |TM
/ \ | |__) | |__ | | | | \| |
/ /\ \ | _ /| __| | | | | . ` |
/ ____ \| | \ \| |____| |__| | |\ |
/_/ \_\_| \_\______|_____/|_| \_|
AMATEUR RADIO EMERGENCY DATA NETWORK
-----------------------------------------------
* 1 Battery Connect all devices
* 2 POE injectors Upgrade firmware to AREDN
* 3 cat5 cables Setup with your callsign
* 1 UBNT NanoStation Point the Antenna
* 1 ipCam Welcome to the Mesh!
-----------------------------------------------
471-2d5beb2, r7258-5eb055306f
----------------------------------------------
root@NOCALL:~# dmesg
[ 0.000000] Linux version 4.9.120 (aredn@76368ce68515) (gcc version 7.3.0 (OpenWrt GCC 7.3.0 r7258-5eb055306f) ) #0 Thu Aug 16 07:51:15 2018
[ 0.000000] bootconsole [early0] enabled
[ 0.000000] CPU0 revision is: 00019374 (MIPS 24Kc)
[ 0.000000] SoC: Qualcomm Atheros QCA9533 ver 2 rev 0
[ 0.000000] Determined physical RAM map:
[ 0.000000] memory: 04000000 @ 00000000 (usable)
[ 0.000000] User-defined physical RAM map:
[ 0.000000] memory: 04000000 @ 00000000 (usable)
[ 0.000000] Initrd not found or empty - disabling initrd
[ 0.000000] Primary instruction cache 64kB, VIPT, 4-way, linesize 32 bytes.
[ 0.000000] Primary data cache 32kB, 4-way, VIPT, cache aliases, linesize 32 bytes
[ 0.000000] Zone ranges:
[ 0.000000] Normal [mem 0x0000000000000000-0x0000000003ffffff]
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000000000000-0x0000000003ffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x0000000003ffffff]
[ 0.000000] On node 0 totalpages: 16384
[ 0.000000] free_area_init_node: node 0, pgdat 803e3984, node_mem_map 81000020
[ 0.000000] Normal zone: 128 pages used for memmap
[ 0.000000] Normal zone: 0 pages reserved
[ 0.000000] Normal zone: 16384 pages, LIFO batch:3
[ 0.000000] pcpu-alloc: s0 r0 d32768 u32768 alloc=1*32768
[ 0.000000] pcpu-alloc: [0] 0
[ 0.000000] Built 1 zonelists in Zone order, mobility grouping on. Total pages: 16256
[ 0.000000] Kernel command line: no-uart no-buzzer no-nand parts=1 boot_part_size=16777216 gpio=0 HZ=325000000 mem=64M kmac=CC:2D:E0:C1:DE:EF board=952-hb board_rev=US ver=6.42.1 hw_opt=00294005 boot=1 mlc=11 console=ttyS0,115200 rootfstype=squashfs noinitrd
[ 0.000000] PID hash table entries: 256 (order: -2, 1024 bytes)
[ 0.000000] Dentry cache hash table entries: 8192 (order: 3, 32768 bytes)
[ 0.000000] Inode-cache hash table entries: 4096 (order: 2, 16384 bytes)
[ 0.000000] Writing ErrCtl register=00000000
[ 0.000000] Readback ErrCtl register=00000000
[ 0.000000] Memory: 60564K/65536K available (3127K kernel code, 136K rwdata, 336K rodata, 168K init, 200K bss, 4972K reserved, 0K cma-reserved)
[ 0.000000] SLUB: HWalign=32, Order=0-3, MinObjects=0, CPUs=1, Nodes=1
[ 0.000000] NR_IRQS:51
[ 0.000000] Clocks: CPU:650.000MHz, DDR:600.000MHz, AHB:300.000MHz, Ref:25.000MHz
[ 0.000000] clocksource: MIPS: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 5880801374 ns
[ 0.000009] sched_clock: 32 bits at 325MHz, resolution 3ns, wraps every 6607641598ns
[ 0.008864] Calibrating delay loop... 432.53 BogoMIPS (lpj=2162688)
[ 0.071946] pid_max: default: 32768 minimum: 301
[ 0.077292] Mount-cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.084800] Mountpoint-cache hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.095581] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[ 0.106784] futex hash table entries: 256 (order: -1, 3072 bytes)
[ 0.114267] NET: Registered protocol family 16
[ 0.122905] MIPS: machine is MikroTik RouterBOARD 952Ui-5ac2nD
[ 0.133838] registering PCI controller with io_map_base unset
[ 0.621979] Can't analyze schedule() prologue at 8036a638
[ 0.637455] PCI host bridge to bus 0000:00
[ 0.642172] pci_bus 0000:00: root bus resource [mem 0x10000000-0x11ffffff]
[ 0.649968] pci_bus 0000:00: root bus resource [io 0x0000]
[ 0.656296] pci_bus 0000:00: root bus resource [??? 0x00000000 flags 0x0]
[ 0.663992] pci_bus 0000:00: No busn resource found for root bus, will use [bus 00-ff]
[ 0.673014] pci 0000:00:00.0: [168c:0050] type 00 class 0x028000
[ 0.673063] pci 0000:00:00.0: reg 0x10: [mem 0x10000000-0x101fffff 64bit]
[ 0.673141] pci 0000:00:00.0: reg 0x30: [mem 0x00000000-0x0000ffff pref]
[ 0.673211] pci 0000:00:00.0: supports D1
[ 0.673220] pci 0000:00:00.0: PME# supported from D0 D1 D3hot
[ 0.673432] pci_bus 0000:00: busn_res: [bus 00-ff] end is updated to 00
[ 0.673460] pci 0000:00:00.0: BAR 0: assigned [mem 0x10000000-0x101fffff 64bit]
[ 0.681769] pci 0000:00:00.0: BAR 6: assigned [mem 0x10200000-0x1020ffff pref]
[ 0.690002] pci 0000:00:00.0: using irq 40 for pin 1
[ 0.696369] clocksource: Switched to clocksource MIPS
[ 0.703156] NET: Registered protocol family 2
[ 0.708894] TCP established hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.716865] TCP bind hash table entries: 1024 (order: 0, 4096 bytes)
[ 0.724085] TCP: Hash tables configured (established 1024 bind 1024)
[ 0.731411] UDP hash table entries: 256 (order: 0, 4096 bytes)
[ 0.738083] UDP-Lite hash table entries: 256 (order: 0, 4096 bytes)
[ 0.745417] NET: Registered protocol family 1
[ 0.750441] PCI: CLS 0 bytes, default 32
[ 0.755719] workingset: timestamp_bits=30 max_order=14 bucket_order=0
[ 0.769418] squashfs: version 4.0 (2009/01/31) Phillip Lougher
[ 0.776032] jffs2: version 2.2 (NAND) (SUMMARY) (LZMA) (RTIME) (CMODE_PRIORITY) (c) 2001-2006 Red Hat, Inc.
[ 0.795956] io scheduler noop registered
[ 0.800462] io scheduler deadline registered (default)
[ 0.806663] Serial: 8250/16550 driver, 1 ports, IRQ sharing disabled
[ 0.814245] console [ttyS0] disabled
[ 0.838443] serial8250.0: ttyS0 at MMIO 0x18020000 (irq = 11, base_baud = 1562500) is a 16550A
[ 0.848237] console [ttyS0] enabled
[ 0.855776] bootconsole [early0] disabled
[ 0.868388] m25p80 spi0.0: found w25q128jv, expected m25p80
[ 0.883912] m25p80 spi0.0: w25q128jv (16384 Kbytes)
[ 0.889448] Creating 6 MTD partitions on "spi0.0":
[ 0.894414] 0x000000000000-0x00000000e000 : "routerboot"
[ 0.901797] 0x00000000e000-0x00000000f000 : "hard_config"
[ 0.909334] 0x00000000f000-0x000000010000 : "bios"
[ 0.916172] 0x000000010000-0x00000001f000 : "routerboot2"
[ 0.923707] 0x00000001f000-0x000000020000 : "soft_config"
[ 0.931266] 0x000000020000-0x000001000000 : "firmware"
[ 0.938429] 2 minor-fw partitions found on MTD device firmware
[ 0.944476] 0x000000020000-0x000000160000 : "kernel"
[ 0.951239] 0x000000160000-0x000001000000 : "rootfs"
[ 0.957982] mtd: device 7 (rootfs) set to be root filesystem
[ 0.963864] 1 squashfs-split partitions found on MTD device rootfs
[ 0.970308] 0x000000660000-0x000001000000 : "rootfs_data"
[ 0.978943] libphy: Fixed MDIO Bus: probed
[ 1.001528] libphy: ag71xx_mdio: probed
[ 1.628950] ag71xx ag71xx.0: connected to PHY at ag71xx-mdio.1:04 [uid=004dd042, driver=Generic PHY]
[ 1.639103] eth0: Atheros AG71xx at 0xb9000000, irq 4, mode:MII
[ 2.268902] ag71xx-mdio.1: Found an AR934X built-in switch
[ 2.322208] eth1: Atheros AG71xx at 0xba000000, irq 5, mode:GMII
[ 2.331703] NET: Registered protocol family 17
[ 2.336427] 8021q: 802.1Q VLAN Support v1.8
[ 2.350887] VFS: Mounted root (squashfs filesystem) readonly on device 31:7.
[ 2.359166] Freeing unused kernel memory: 168K
[ 2.363754] This architecture does not have kernel memory protection.
[ 2.566380] random: fast init done
[ 3.790903] init: Can't open /sys/block/zram0/disksize: No such file or directory
[ 3.799483] init: Console is alive
[ 3.803227] init: - watchdog -
[ 3.826575] kmodloader: loading kernel modules from /etc/modules-boot.d/*
[ 3.892129] usbcore: registered new interface driver usbfs
[ 3.897931] usbcore: registered new interface driver hub
[ 3.903496] usbcore: registered new device driver usb
[ 3.913638] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[ 3.921123] kmodloader: done loading kernel modules from /etc/modules-boot.d/*
[ 3.930999] init: - preinit -
[ 4.909764] random: procd: uninitialized urandom read (4 bytes read)
[ 8.166595] mount_root: jffs2 not ready yet, using temporary tmpfs overlay
[ 8.201831] urandom-seed: Seed file not found (/etc/urandom.seed)
[ 8.459310] procd: - early -
[ 8.462388] procd: - watchdog -
[ 9.050003] procd: - watchdog -
[ 9.053521] procd: - ubus -
[ 9.251150] random: ubusd: uninitialized urandom read (4 bytes read)
[ 9.319481] random: ubusd: uninitialized urandom read (4 bytes read)
[ 9.326544] random: ubusd: uninitialized urandom read (4 bytes read)
[ 9.333993] procd: - init -
[ 9.706769] kmodloader: loading kernel modules from /etc/modules.d/*
[ 9.719559] Loading modules backported from Linux version wt-2017-11-01-0-gfe248fc2c180
[ 9.727894] Backport generated by backports.git v4.14-rc2-1-31-g86cf0e5d
[ 9.739828] nf_conntrack version 0.5.0 (1024 buckets, 4096 max)
[ 9.803254] xt_time: kernel timezone is -0000
[ 9.955654] ip_tables: (C) 2000-2006 Netfilter Core Team
[ 10.013134] ath10k_pci 0000:00:00.0: pci irq legacy oper_irq_mode 1 irq_mode 0 reset_mode 0
[ 10.292228] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/pre-cal-pci-0000:00:00.0.bin failed with error -2
[ 10.303340] ath10k_pci 0000:00:00.0: Falling back to user helper
[ 10.471616] firmware ath10k!pre-cal-pci-0000:00:00.0.bin: firmware_loading_store: map pages failed
[ 10.484167] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/cal-pci-0000:00:00.0.bin failed with error -2
[ 10.494914] ath10k_pci 0000:00:00.0: Falling back to user helper
[ 10.665882] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/QCA9887/hw1.0/firmware-6.bin failed with error -2
[ 10.676989] ath10k_pci 0000:00:00.0: Falling back to user helper
[ 10.781447] firmware ath10k!QCA9887!hw1.0!firmware-6.bin: firmware_loading_store: map pages failed
[ 11.070705] ath10k_pci 0000:00:00.0: qca9887 hw1.0 target 0x4100016d chip_id 0x004000ff sub 0000:0000
[ 11.080291] ath10k_pci 0000:00:00.0: kconfig debug 0 debugfs 1 tracing 0 dfs 1 testmode 1
[ 11.094223] ath10k_pci 0000:00:00.0: firmware ver 10.2.4-1.0-00033 api 5 features no-p2p,ignore-otp,skip-clock-init,mfp,allows-mesh-bcast crc32 c232a0c3
[ 11.141135] ath10k_pci 0000:00:00.0: Direct firmware load for ath10k/QCA9887/hw1.0/board-2.bin failed with error -2
[ 11.151945] ath10k_pci 0000:00:00.0: Falling back to user helper
[ 11.230086] firmware ath10k!QCA9887!hw1.0!board-2.bin: firmware_loading_store: map pages failed
[ 11.239596] ath10k_pci 0000:00:00.0: board_file api 1 bmi_id N/A crc32 546cca0d
[ 12.290258] ath10k_pci 0000:00:00.0: htt-ver 2.1 wmi-op 5 htt-op 2 cal file max-sta 128 raw 0 hwcrypto 1
[ 12.428071] ath: EEPROM regdomain: 0x0
[ 12.428080] ath: EEPROM indicates default country code should be used
[ 12.428083] ath: doing EEPROM country->regdmn map search
[ 12.428094] ath: country maps to regdmn code: 0x3a
[ 12.428099] ath: Country alpha2 being used: US
[ 12.428102] ath: Regpair used: 0x3a
[ 12.488744] ath: EEPROM regdomain: 0x0
[ 12.488753] ath: EEPROM indicates default country code should be used
[ 12.488756] ath: doing EEPROM country->regdmn map search
[ 12.488771] ath: country maps to regdmn code: 0x3a
[ 12.488777] ath: Country alpha2 being used: US
[ 12.488780] ath: Regpair used: 0x3a
[ 12.499571] ieee80211 phy1: Selected rate control algorithm 'minstrel_ht'
[ 12.503433] ieee80211 phy1: Atheros AR9531 Rev:2 mem=0xb8100000, irq=47
[ 12.569914] kmodloader: done loading kernel modules from /etc/modules.d/*
[ 13.946056] urandom_read: 5 callbacks suppressed
[ 13.946064] random: jshn: uninitialized urandom read (4 bytes read)
[ 24.343668] br-lan: port 1(eth1.0) entered blocking state
[ 24.349322] br-lan: port 1(eth1.0) entered disabled state
[ 24.355238] device eth1.0 entered promiscuous mode
[ 24.360230] device eth1 entered promiscuous mode
[ 25.979038] eth1: link up (1000Mbps/Full duplex)
[ 26.036414] br-lan: port 1(eth1.0) entered blocking state
[ 26.042003] br-lan: port 1(eth1.0) entered forwarding state
[ 30.632665] br-lan: port 2(wlan0) entered blocking state
[ 30.638232] br-lan: port 2(wlan0) entered disabled state
[ 30.644047] device wlan0 entered promiscuous mode
[ 30.649021] br-lan: port 2(wlan0) entered blocking state
[ 30.654510] br-lan: port 2(wlan0) entered forwarding state
[ 30.660711] br-lan: port 2(wlan0) entered disabled state
[ 30.666331] br-lan: port 3(wlan1) entered blocking state
[ 30.671863] br-lan: port 3(wlan1) entered disabled state
[ 30.677683] device wlan1 entered promiscuous mode
[ 30.732474] br-lan: port 3(wlan1) entered blocking state
[ 30.738018] br-lan: port 3(wlan1) entered forwarding state
[ 31.267029] br-lan: port 2(wlan0) entered blocking state
[ 31.272562] br-lan: port 2(wlan0) entered forwarding state
[ 34.336124] jffs2_scan_eraseblock(): End of filesystem marker found at 0x0
[ 34.357961] jffs2_build_filesystem(): unlocking the mtd device...
[ 34.369315] done.
[ 34.371321] jffs2_build_filesystem(): erasing all blocks after the end marker...
[ 65.756863] done.
[ 65.758898] jffs2: notice: (1581) jffs2_build_xattr_subsystem: complete building xattr subsystem, 0 of xdatum (0 unchecked, 0 orphan) and 0 of xref (0 dead, 0 orphan) found.
[ 66.529568] random: crng init done
[ 71.047765] eth1: link down
[ 71.052483] br-lan: port 1(eth1.0) entered disabled state
[ 71.132340] device eth1.0 left promiscuous mode
[ 71.137121] device eth1 left promiscuous mode
[ 71.141745] br-lan: port 1(eth1.0) entered disabled state
[ 71.246172] br-lan: port 1(eth1.0) entered blocking state
[ 71.251828] br-lan: port 1(eth1.0) entered disabled state
[ 71.257889] device eth1.0 entered promiscuous mode
[ 71.262997] device eth1 entered promiscuous mode
[ 72.314891] br-lan: port 3(wlan1) entered disabled state
[ 72.320529] br-lan: port 2(wlan0) entered disabled state
[ 72.380031] device eth1.0 left promiscuous mode
[ 72.384905] device eth1 left promiscuous mode
[ 72.389599] br-lan: port 1(eth1.0) entered disabled state
[ 72.467238] device wlan0 left promiscuous mode
[ 72.472058] br-lan: port 2(wlan0) entered disabled state
[ 72.515702] device wlan1 left promiscuous mode
[ 72.520462] br-lan: port 3(wlan1) entered disabled state
[ 77.690334] br-lan: port 1(eth1.0) entered blocking state
[ 77.695922] br-lan: port 1(eth1.0) entered disabled state
[ 77.701893] device eth1.0 entered promiscuous mode
[ 77.706878] device eth1 entered promiscuous mode
[ 79.318894] eth1: link up (1000Mbps/Full duplex)
[ 79.356468] br-lan: port 1(eth1.0) entered blocking state
[ 79.362064] br-lan: port 1(eth1.0) entered forwarding state
[ 80.033480] br-lan: port 2(wlan1) entered blocking state
[ 80.039042] br-lan: port 2(wlan1) entered disabled state
[ 80.044880] device wlan1 entered promiscuous mode
[ 82.176072] br-lan: port 2(wlan1) entered blocking state
[ 82.181637] br-lan: port 2(wlan1) entered forwarding state
[ 82.200109] br-lan: port 3(wlan0) entered blocking state
[ 82.205607] br-lan: port 3(wlan0) entered disabled state
[ 82.222470] device wlan0 entered promiscuous mode
[ 82.568177] br-lan: port 3(wlan0) entered blocking state
[ 82.573717] br-lan: port 3(wlan0) entered forwarding state
[10915.307183] eth1: link down
[10915.335502] br-lan: port 1(eth1.0) entered disabled state
[10919.388184] eth1: link up (1000Mbps/Full duplex)
[10919.409663] br-lan: port 1(eth1.0) entered blocking state
[10919.415273] br-lan: port 1(eth1.0) entered forwarding state
[10982.117145] eth1: link down
[10982.141297] br-lan: port 1(eth1.0) entered disabled state
[10984.158201] eth1: link up (1000Mbps/Full duplex)
[10984.183125] br-lan: port 1(eth1.0) entered blocking state
[10984.188769] br-lan: port 1(eth1.0) entered forwarding state
root@NOCALL:~# ^C
root@NOCALL:~#
Beginning to think the hap does not like me
regards
Denis
looked Ed like it worked. Node rebooted, but no change in web access.
Denis
The UI access is possibly broken in this nightly build given other unrelated changes. There is another issue submitted for this build that we are looking at. Try clearing the browser cache. The changes in last nigth's build may require the cache to be cleared, need to investigate further.
Joe
You could copy /usr/sbin/uhttpd from another functioning node to this same location on the hAP, then "/etc/init.d/uhttpd restart" to work around this issue for now.
Joe
regards
I would like to run the hAP lite 952Ui-5ac2nD as part of a portable mesh as described by Trevor K7FPV and replace the AirRouter HP. Is it possible to power the USB without causing any issues? I have noticed that it's on during the boot process. The USB is only used for power to the TP Link and the convenience of using only the POE to power the 3 devices. Is it planed for a future build or something that can be looked at?
Thank you,
Denis KD1HA
Hi Joe. I have build AREDN-477 and it is checked on, no power either way and I checked that before I posted. The POE works when checked on and off when not but the USB is dead. Save Settings was also done in both cases. I also ran the node with both wall wart and PoE.
I thought you may need this:
will submit a fix shortly.
Maybe you already know this and it is working but it does not hold the Set to Default after a reboot. The check is on and I then tap the Save Setting and then Set to Default or any combination of the above. It's not a big deal to turn it on after but I thought I would report my finding. I can still use it!
Thank you,
Denis
Hi,
I'm trying to install aredn image on device that by all means looks like correct hAP lite 952Ui-5ac2nD.
I managed to upload the .elf file from my Mac computer and it boots. Well, my first issue was that there is red led on port 5, but I found out that this means active poe. What is actually different than in youtube video for windows install is that I get IP on WAN port not LAN.
The problem is that I can't upload the image from the nightly build. I get Bad Getway screen after a short time. I also tried sysupgrade via telnet, but I get the following error:
I think that device is ok and supported, and it should work, but I'm dealing with this just for last two days, so it is possible that I have overlooked something obvious.
I hope someone can point in the right direction.
Uroš, S57UT
from: aredn-648-ef24633-mikrotik-rb-nor-flash-16M-sysupgrade.bin
to: aredn-648-ef24633-mikrotik-rb-nor-flash-16M-ac-sysupgrade.bin
Joe AE6XE
I forgot to mention. I did use image that has ac in name aredn-648-ef24633-mikrotik-rb-nor-flash-16M-ac-sysupgrade.bin.
73, Uroš S57UT
Joe AE6XE
Pages
