Meshmap and 3.20.3.1 not displaying tunnel and report node as DTD

6 posts / 0 new
Last post
KA2FNK
Meshmap and 3.20.3.1 not displaying tunnel and report node as DTD

Updated nodes  to 3.20.3.1 and meshmap nnow does not show the tunnels and reports the node as DTD.

The node does report tunnel looking at the mesh status  page ont the node. This issue appears  not to be hardware relayed as we have tunnels with rockets
GL/s and nanostation.  Upgraded the meshmap scripts from Eric (KG6WXC)  thinking that was the issue with no luck.

Any ideas ?
Thank you
Bill

KA2FNK
Meshmap map_function.inc expects tunnels to have a cost on 1

The map-function.inc logic seems to be the reason tunnels will not display.

Two items.

1.  The function does not account for tunnel with a cost of 0.1 which is the case with 3.20.3.1.
2.  Node Distance seems to come into play as the function assumes that a DTD link would not be greater
than a mile.
Bill





w6bi
w6bi's picture
Old version?

That may be an old version of the mapper - I know there have been several updates in the last month or so, and I believe Eric did accommodate that logic.  (I maybe be mistaken).
In any case, a version update may help.

Orv W6BI

nc8q
nc8q's picture
MeshMap and AREDN 3.20.3.1

I upgraded nodes to 3.20.3.1 then did a 'git pull' in /meshmap folder.
My meshmap's node's links seem correct.

Node is Mikrotik hAP:

Node Name (cost to/from) distance bearing
NC8Q-uAP1 (DTD) 0.01mi (0.01km) 217.5°
NC8Q-uAP2 (DTD) 0.01mi (0.01km) 90°
NC8Q-M2-34 (1/1) 17.61mi (28.34km) 147.7°  <-- tunnel


Chuck




KA2FNK
The first thing is did was a


The first thing is did was a git t pull down the latest meshmap with no luck. I verified that the git did give new files.
Eric said he will look at it.

nc8q
nc8q's picture
Updated nodes to 3.20.3.1 and meshmap nnow does not show the tu

Updated nodes to 3.20.3.1 and meshmap nnow does not show the tunnels...

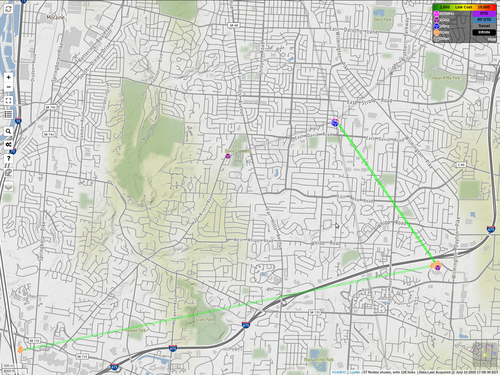

My meshmap shows tunnels as gray lines.
