Mesh Network Guidelines, March 16, 2016
Rod Fritz WB9KMO, rod@sbatv.org
These guidelines were prepared for the Superstition Amateur Radio Club in Mesa AZ. I hope you find them informative and useful.
The guidelines are intended to maximize mesh network success while minimizing interference. It may be appropriate to modify the guidelines as we accumulate input and experience.
WEBSITES - Use the www.aredn.org and www.bbhn.org websites to supplement these guidelines and learn more about installing and using a Broadband Hamnet mesh network
FIRMWARE - Install the most current supported (not beta test) firmware for your devices; AREDN is preferred, BBHN is compatible; use BroadbandHamnet as the SSID prefix and Callsign-DeviceAbbrev-DirectionPointedAbbrev as the Hostname, like WB9KMO-NSM2-S60; use directions like OMNI, N, S, E, W, NE, SSW, E60 (east, 60 degrees wide), 150TO210 (from 150 degrees to 210 degrees), ROTATABLE, etc.
DISTANCE BETWEEN NODES - Ensure that your node's "DISTANCE" value is set optimally; too low will timeout before connection; too high will cause unnecessary delays; this is critical to performance.
DHCP ADDRESS RESERVATIONS - On the Port Fowarding, DHCP screen, ensure that you name your local devices and assign IP Addresses as DHCP reservations on nodes beginning with your callsign to reduce name collisions. (ie. K5DLQ-RASPBX)
INTERNET OR NOT - Generally, use apps that do not require an Internet connection so they function if the Internet is down (during a disaster); optionally, connect to the Internet to allow additional functionality; you DON'T need to enable "Mesh Gateway" if you just want to use local devices that don't require an Internet connection
2.4 GHZ OUTDOOR NODES - Only use Channel -2 with a bandwidth that stays in the band (5 or 10 MHz); limit transmitter power to the minimum required for acceptable quality; limit the antenna beamwidth to the minimum required for the desired nodes and users; select antenna direction and polarity to minimize interference with unintended services and users
2.4 GHZ INDOOR NODES- Use any channel and bandwidth that is legal and minimize interference outside of your building; limit transmitter power to the minimum required for acceptable quality
2.4 GHZ ON-PROPERTY NODES - Only if necessary, use any channel bandwidth that is legal for connections on your property (indoors or outdoors) and minimize interference outside of your property; limit transmitter power to the minimum required for acceptable quality
INTERFERENCE REGULATIONS - Amateur Radio spread spectrum (SS) emissions are regulated by the FCC (Part 97). (NOTE: I have been told that AREDN/BBHN transmissions are not spread spectrum. If that is true, the following may not apply.) §97.311 SS emission types (b) A station transmitting SS emissions must not cause harmful interference to stations employing other authorized emissions, and must accept all interference caused by stations employing other authorized emissions.
INTERCONNECTING LOCAL NODES - To interconnect users on different bands and channels, connect your local nodes together; for two nodes, connect the POE 'LAN' ports together; for more than two nodes, connect them with a network switch that is dedicated to the mesh network (and typically not on your LAN or the Internet), like a Linksys WRT54x or a NetGear GS10x
ADDING LOCAL I/O DEVICES - To use smartphones, computers and printers on the mesh, connect a Ubiquiti AirGateway or equivalent device to the mesh network (and typically not to your LAN or the Internet); on the AirGateway Network tab, change the mode to Bridge; connect the devices to the gateway with Wi-Fi; use the channel guidelines presented above.
SUPPORT - Access the AREDN Forum on www.aredn.org to ask questions and learn about other network options and applications
I could add:
+1
You also don't need a switch if there are only two devices connected DtD. They can be connected back-to-back across their LAN PoE ports.
Thanks for the feedback. I'll update the file.
K5DLQ - Please clarify setting DHCP reservations.
KG6JEI - What does +1 mean?
(+1 means the person agrees/likes the post)

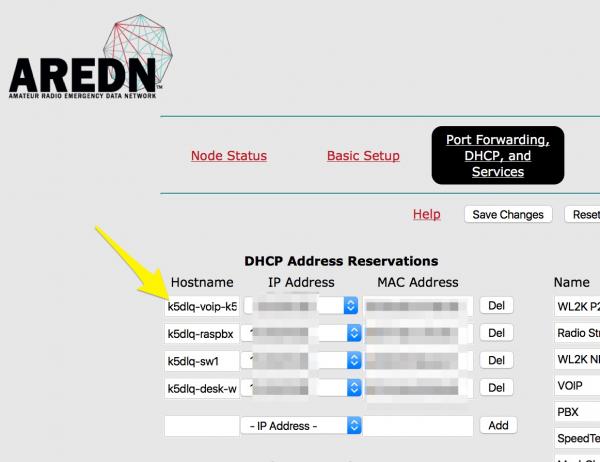

RE: DHCP reservation/host names... see the following screenshot...
The bandwidth (5 or 10 mb/s) should be (5 or 10 MHz). Using 10 MHz and MIMO it is quite possible to get more than 10 mb/s within a 10 MHz channel.
Not sure why you mention SS spread spectrum. BBHN/AREDN does not use it. The main emission mode is OFDM (802.11g). At the lowest data rate, the radios will use DSSS (direct sequence spread spectrum) also known a frequency-hopping and not subject to the same restrictions.
A more interesting factoid in considering interference is that part-15 (unlicensed) operation - e.g., your neighbors' wifi - must accept interference from ham's part-97 (licensed) operation and they must avoid interfering with us.
Good luck enforcing that one, by the way.
;-)
Lots of great info, especially for those of us just starting up.
I like the concept of putting the direction in the name. I've other thoughts as well, such as where it is located and the city/club/org that it is pointed at.
(Side note:
MARC - Manteca ARC
SARA - Stanislaus Amatuer Radio Assn.
TARC - Turlock ARC)
For instance I was planning to deploy with:
Using your direction info added on:
Or using a compass rose method:
My QTH pointed at MtOso:
or:
I think the points of a compass, unless using the cardinal directions, are less precise, and as I don't sail I don't know them all, so I think I prefer perhaps some hybrid would be good.
That seems long and messy, but perhaps someone else can perfect it better?
Thanks for posting these guidelines Rod. Could you elaborate a little more on the importance of the "DISTANCE BETWEEN NODES" item and how this affects performance?
Thanks
Brian - K6BPM
Hello Brian. Good to see you here. I hope you guys are making good progress. I'm still lower than I'd like on the learning curve.
DISTANCE BETWEEN NODES is all about tx/rx timeout. When a packet is sent, the sender expects an acknowledge response in an appropriate timeframe. If the ack is not received in time, a timeout is processed that retries transmission of the packet, waiting again for an ack. A finite number of retries are allowed. If ack is not received in the allowed number of retries, the packet transmission is aborted and an error is reported. If the ack is received on any transmission within the timeout time, the next packet gets sent.
If the timeout value is large enough to allow the transmitted packet to be successfully received and the transmitted acknowledgment to be successfully received, it is sufficient to traverse the DISTANCE BETWEEN NODES.
If the timeout value is too small, the transmission will fail because an ack won't be received in time. If the timeout value is too large, a bad transmission will take too long to be recognized reducing throughput, even if retries succeed.
Therefore, for a given distance, there is an optimal timeout value. If you enter the DISTANCE BETWEEN NODES accurately, the software will determine and use an appropriate time out value.
If you can measure throughput, you may be able to optimize the DISTANCE BETWEEN NODES value to get the best throughput. Incorrect values will negatively affect throughput.
Ahh... Thanks Rod, I was wondering why there was that DISTANCE setting. I thought it was to simply regulate output power, but this makes perfect sense. Overall, I am pretty impressed with this whole mechanism. The firmware is very well thought out.
Hi Rod, I am located in Wickenburg, NW of PHX area. We have a small mesh setup here with 1 Nano pointed North, connected to Doug, NoDAJ, in Congress area, and another Nano pointed SW toward PHX area. We are interested in building out a network for EMCOMM that would link Maricopa EOC to Yavapai EOC in Prescott - much work to do yet but looks like a node on White Tanks would help at southern end. Would like to know more about your system, plans , etc. Contact me at flystol@gmail.com if you have time. tx, Ron, K7OPA
