Channels 171-184? - Ubiquiti or Mikrotik hardware

4 posts / 0 new
Last post
VE7TOP
Channels 171-184? - Ubiquiti or Mikrotik hardware
Here's a simple question I hope.    The AREDN bandplan for 5ghz shows channels  171-184  (5,855-5,920) but when I look at the spec sheets for Mikrotik and Ubiquiti hardware I see the following operating frequencies listed.

Mikrotik
International: 5150 - 5875 MHz

Ubiquiti
5470 - 5600, 5650 - 5725, 5725 - 5850

If the units are flashed with the AREDN firmware will they operate in the channels between 171 and 184?    Was this just a manufacturers firmware limitation?  Are there any performance constraints if you want to operate on these channels.

We are at the point where we want to plan on which channels on which nodes we will use in our mesh implementation so it would really be useful to know.

cheers
Chris
ve7top
w6bi
w6bi's picture
Software limitation
The available channels are determined by the installed software.  With AREDN code installed,you're good to go :-)

73
Orv W6BI
nc8q
nc8q's picture

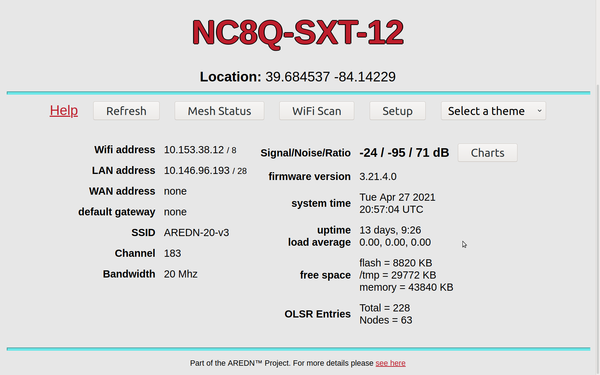

channel 183

Are there any performance constraints if you want to operate on these channels.
https://www.arednmesh.org/comment/16419#comment-16419
.

Image Attachments:
VE7TOP
Thanks for the info
Appreciate the quick response,  that will certainly help with our planning process.

cheers
Chris
ve7top
