Spectrum chart 2GHZ

Spectrum chart 2GHz

Thanks to Ken KE2N for the following charts

Rocket M2 - Channel Width 5MHz - Power 13dBm
2G 5 MHz 13 dBm

Rocket M2 - Channel Width 5MHz - Power 18dBm
2G 5 MHz 18 dBm

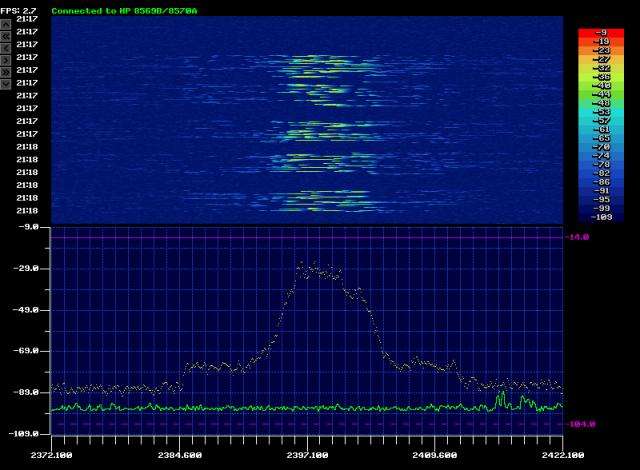

Rocket M2 - Channel Width 5MHz - Power 22dBm
2G 5 MHz 22 dBm

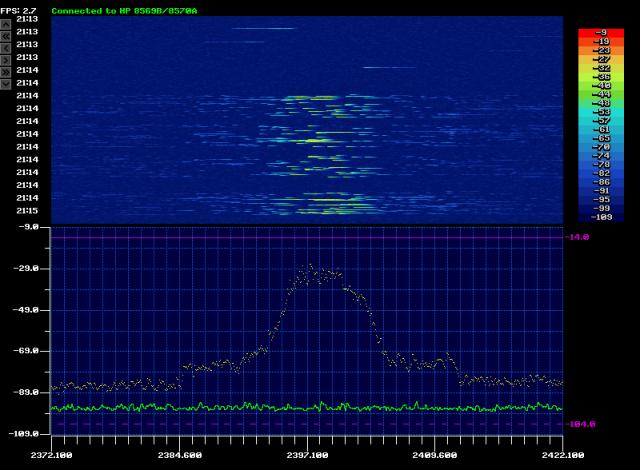

Rocket M2 - Channel Width 5MHz - Power 25dBm
2G 5 MHz 25 dBm

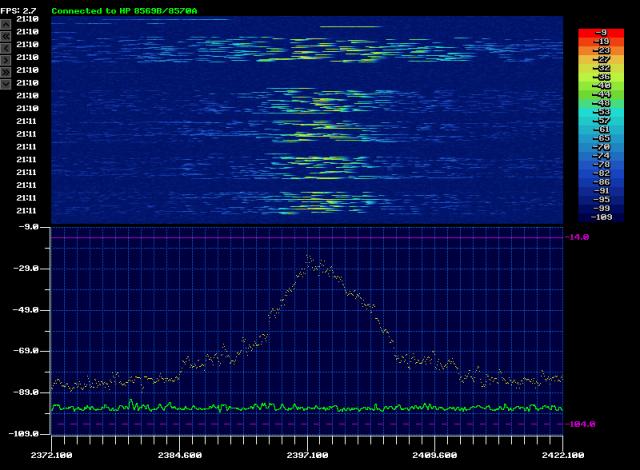

Rocket M2 - Channel Width 5MHz - Power 28dBm
2G 5 MHz 28 dBm

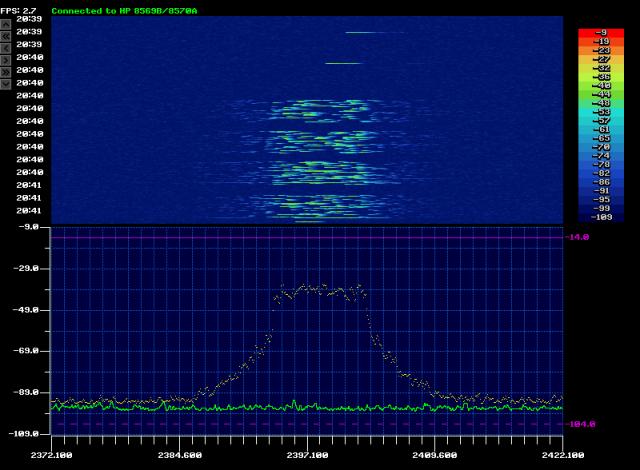

Rocket M2 - Channel Width 10MHz - Power 13dBm
2G 10 MHz 13 dBm

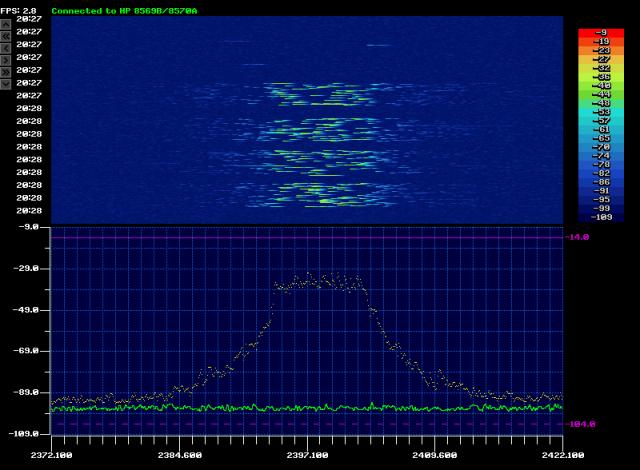

Rocket M2 - Channel Width 10MHz - Power 18dBm
2G 10 MHz 18 dBm

Rocket M2 - Channel Width 10MHz - Power 22dBm
2G 10 MHz 22 dBm

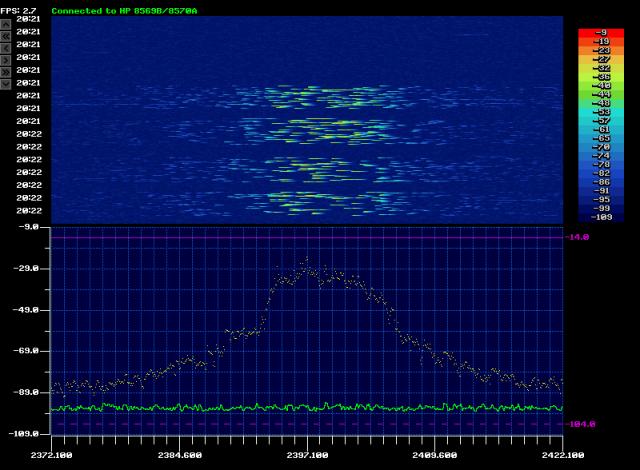

Rocket M2 - Channel Width 10MHz - Power 25dBm
2G 10 MHz 25 dBm

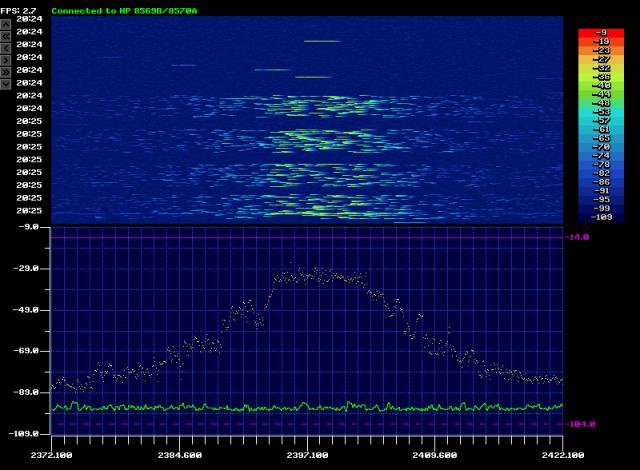

Rocket M2 - Channel Width 10MHz - Power 28dBm
2G 10 MHz 28 dBm

Rocket M2 - Channel Width 20MHz - Power 13dBm
2G 20 MHz 13 dBm

Rocket M2 - Channel Width 20MHz - Power 18dBm
2G 20 MHz 18 dBm

Rocket M2 - Channel Width 20MHz - Power 23dBm
2G 20 MHz 23 dBm

Rocket M2 - Channel Width 20MHz - Power 25dBm
2G 20 MHz 25 dBm

Rocket M2 - Channel Width 20MHz - Power 28dBm
2G 20 MHz 28 dBm

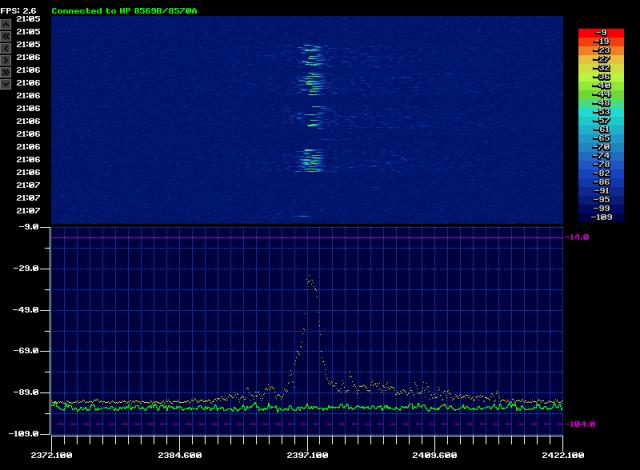

2G 20 MHz 28 dBm 50MHZ
